Silk Screen / Etched Signage
Flat metal plates: silkscreen, chemical etch, electroplated etch, and engrave-and-fill. Door plates, directories, and donor walls — not dimensional letters.
Specification
| Materials | SS304/316 plates, brass on request |
|---|---|
| Thickness | Plate 0.8–3.0 mm typical |
| Finish | Brushed, mirror, painted fill, plate |
| Light / power | Usually unlit |
| IP / outdoor | Outdoor etch + fill holds up; screen ink choice matters |
| Install | Hidden studs, standoffs, or adhesive + pins |
| Size range | Plaques to directory panels |
| Certs | n/a typical |
| Pack / Incoterm | Film + rigid board |
Build options
Build options on this line.
Not separate products. These are the common builds we cut, finish or light on this line — name the one you want on the quote.

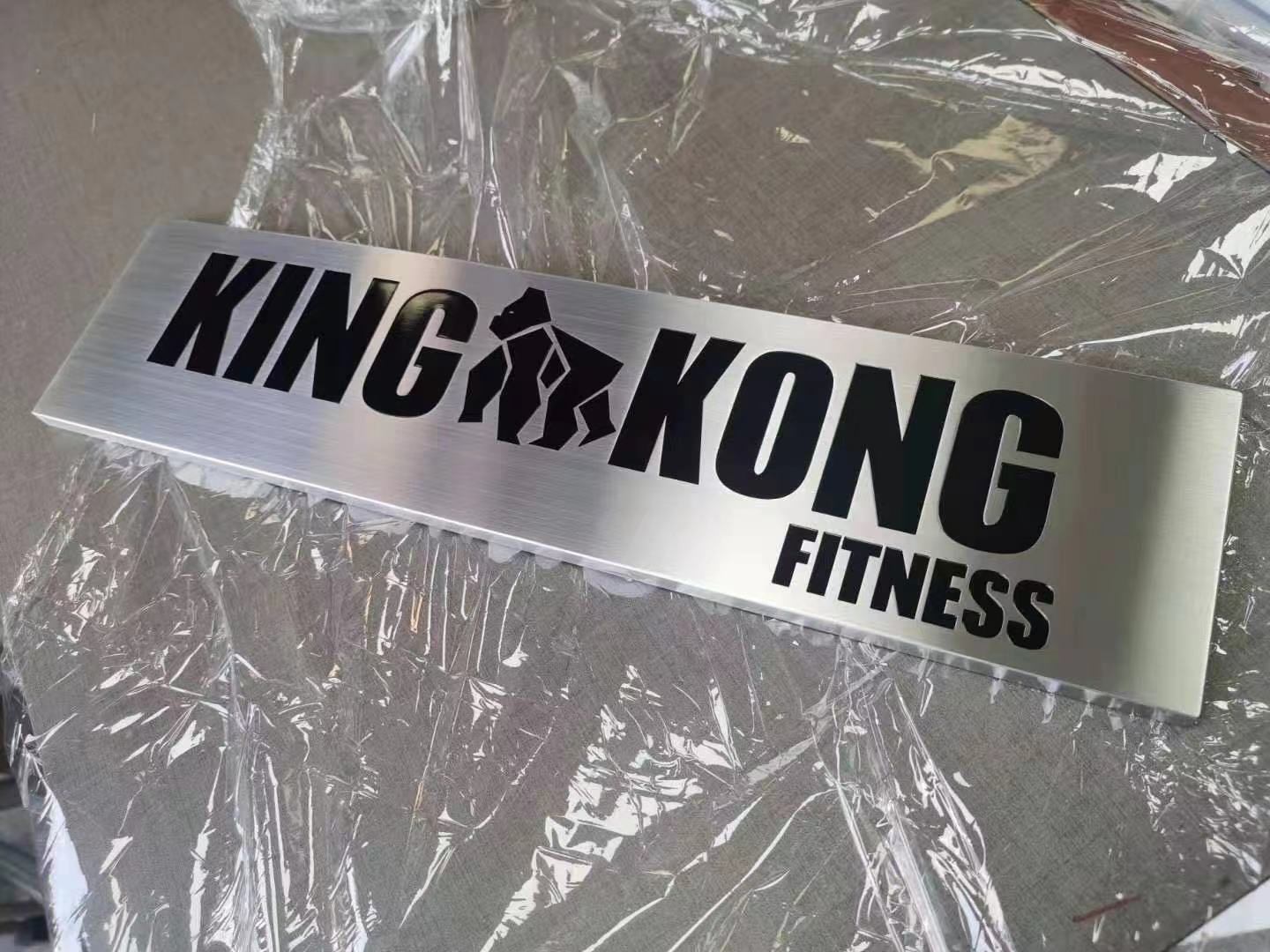

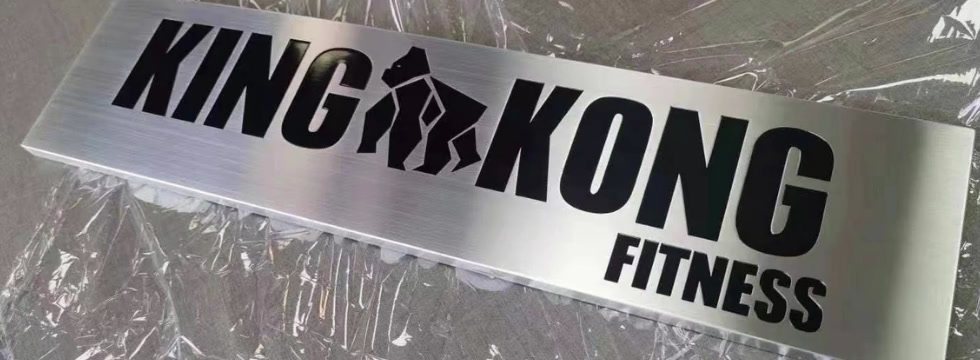

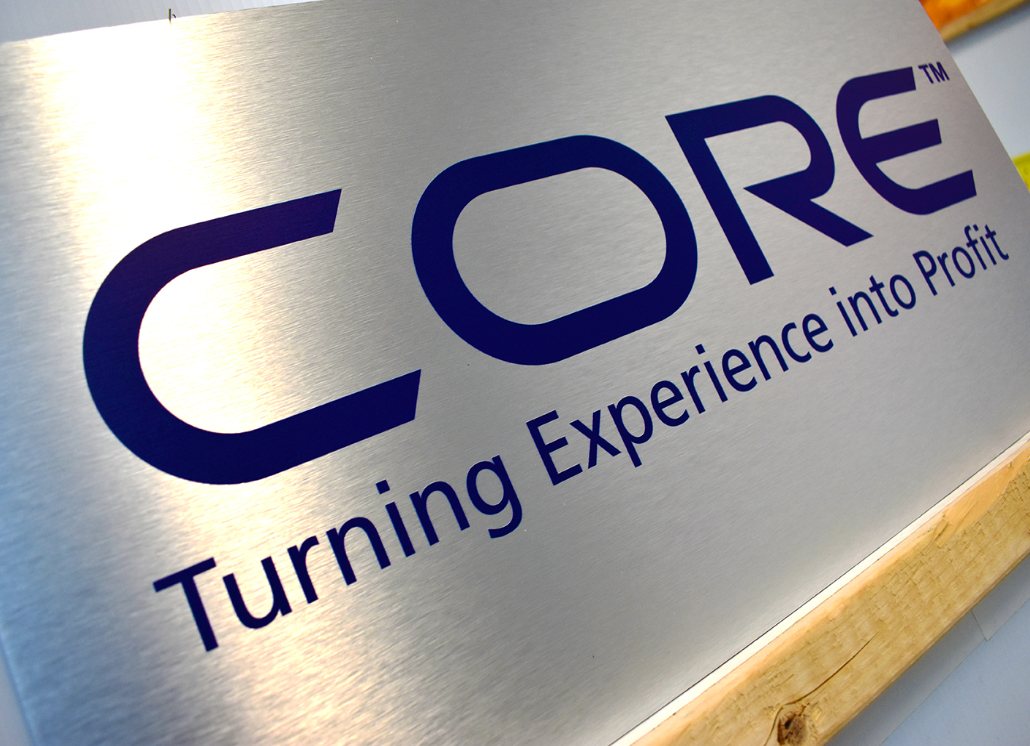

Silkscreen
Ink on brushed or painted metal.

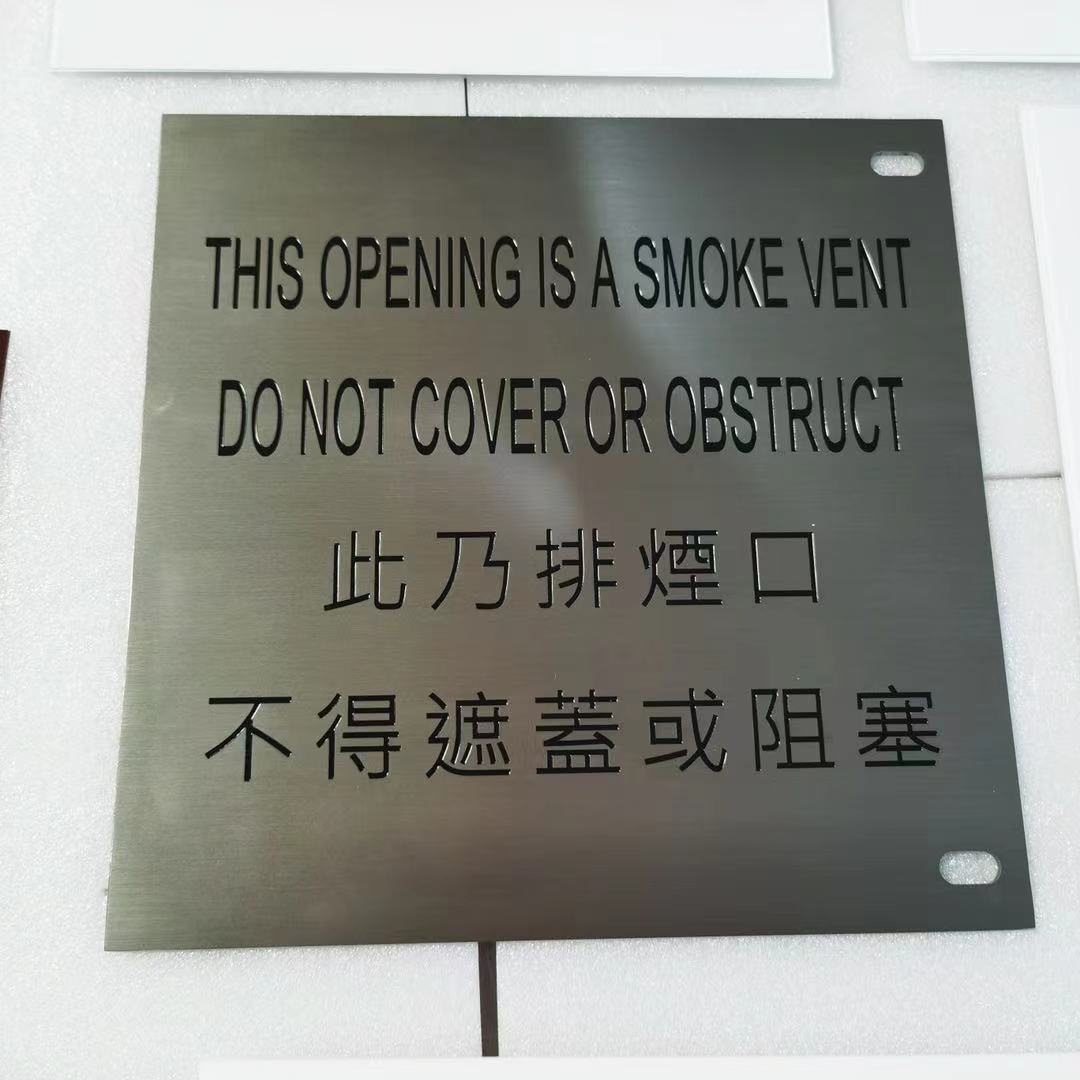

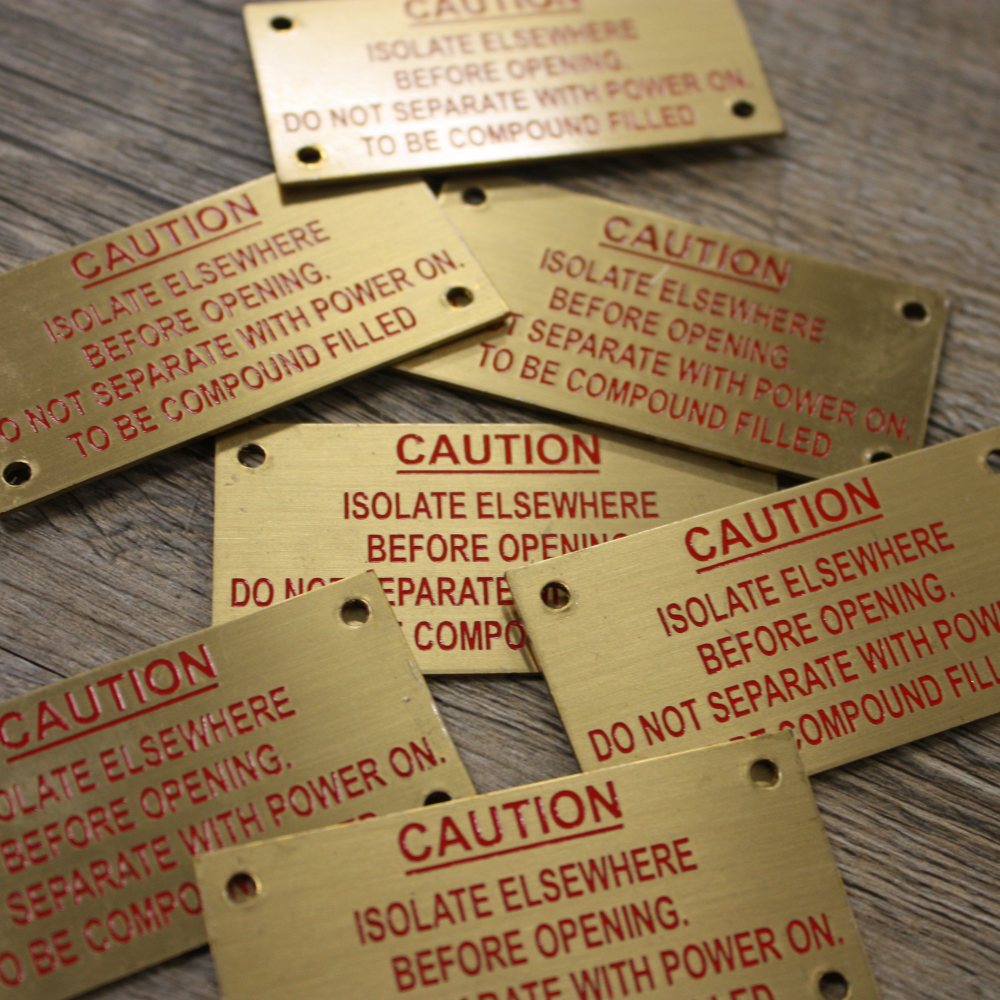

Etched SS
Recessed copy, optional colour fill.
Electroplated etched
Etch plus plated tone.

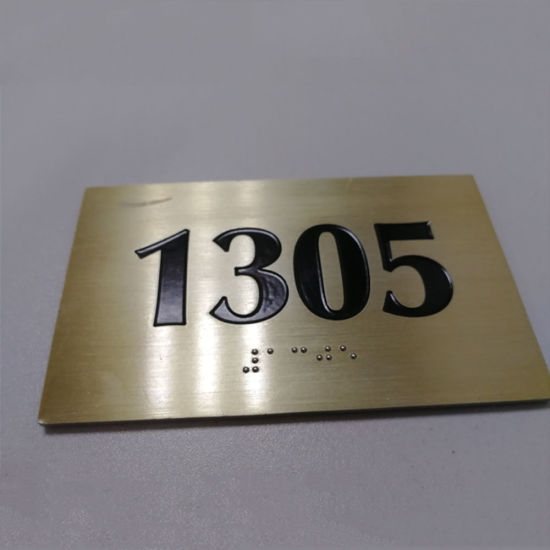

Engraved + filled
Mechanical engrave when etch is not specified.

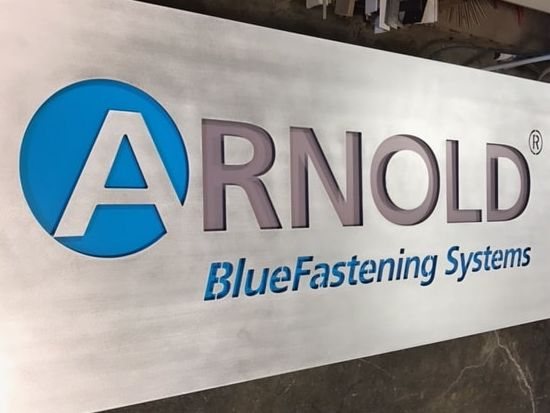

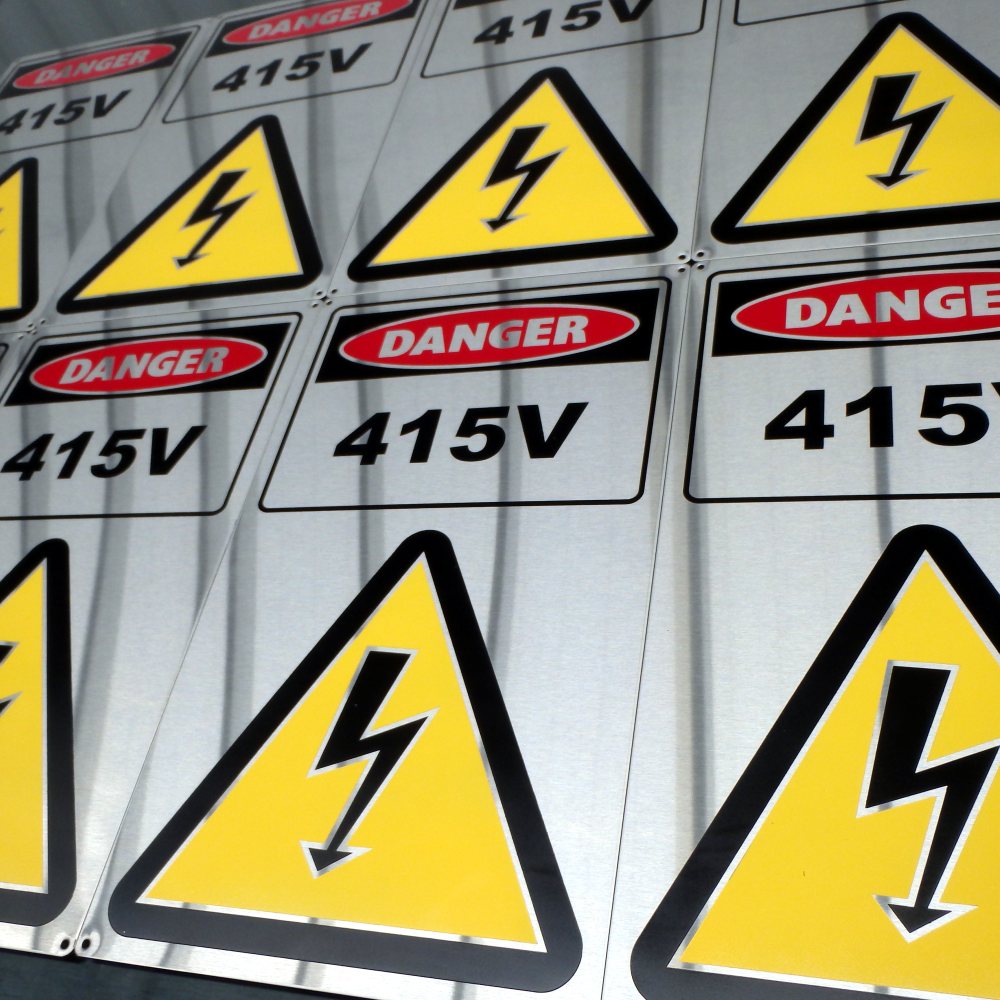

Etched metal plate
Metal substrate, artwork screen-printed onto it, then the unprinted area is etched away so the graphic stands proud of the plate. On steel or copper the surface is dissolved with acid to a recess and filled with paint — the finish used on hotel and retail plaques.
Print film vs cut vinyl
Print film reproduces a full-colour graphic to the approved artwork. Computer-cut vinyl is a single or multi-colour film with a longer life and no fading. Both die-cut to shape.
FAQ · this product only
Etch or screen for outdoor?
Etch + fill for long outdoor life. Screen is faster for indoor directories.
Minimum letter size on a plaque?
Depends on process. Fine legal copy is better etched or engraved than dimensional.
Can this match dimensional letters?
Yes — same metal grade and finish family across a building set.
Do you do wayfinding maps?
Printed or etched maps on metal / acrylic. Complex maps need vector art.
