Painted Metal Letters
Fabricated aluminium or stainless letters, sanded and 2-pac painted to Pantone. Used on wayfinding, pylons, and brand marks that cannot stay raw metal.
Specification
| Materials | Aluminium or SS304/316 |
|---|---|
| Thickness | Face 1.0–2.0 mm typical |
| Finish | 2-pac polyurethane, gloss or satin, Pantone |
| Light / power | Usually unlit; can add halo |
| IP / outdoor | Outdoor 2-pac system; coastal spec quoted per site |
| Install | Stud, base plate, or through-bolt |
| Size range | From 80 mm to large façade / pylon faces |
| Pack / Incoterm | Corner protectors + crate on large pieces |
Build options
Four shop constructions on this line.
Not separate products. These are the common builds we cut, finish or light on this line — name the one you want on the quote.
Free-standing 3D
Floor or plinth letters for lobbies and launches.

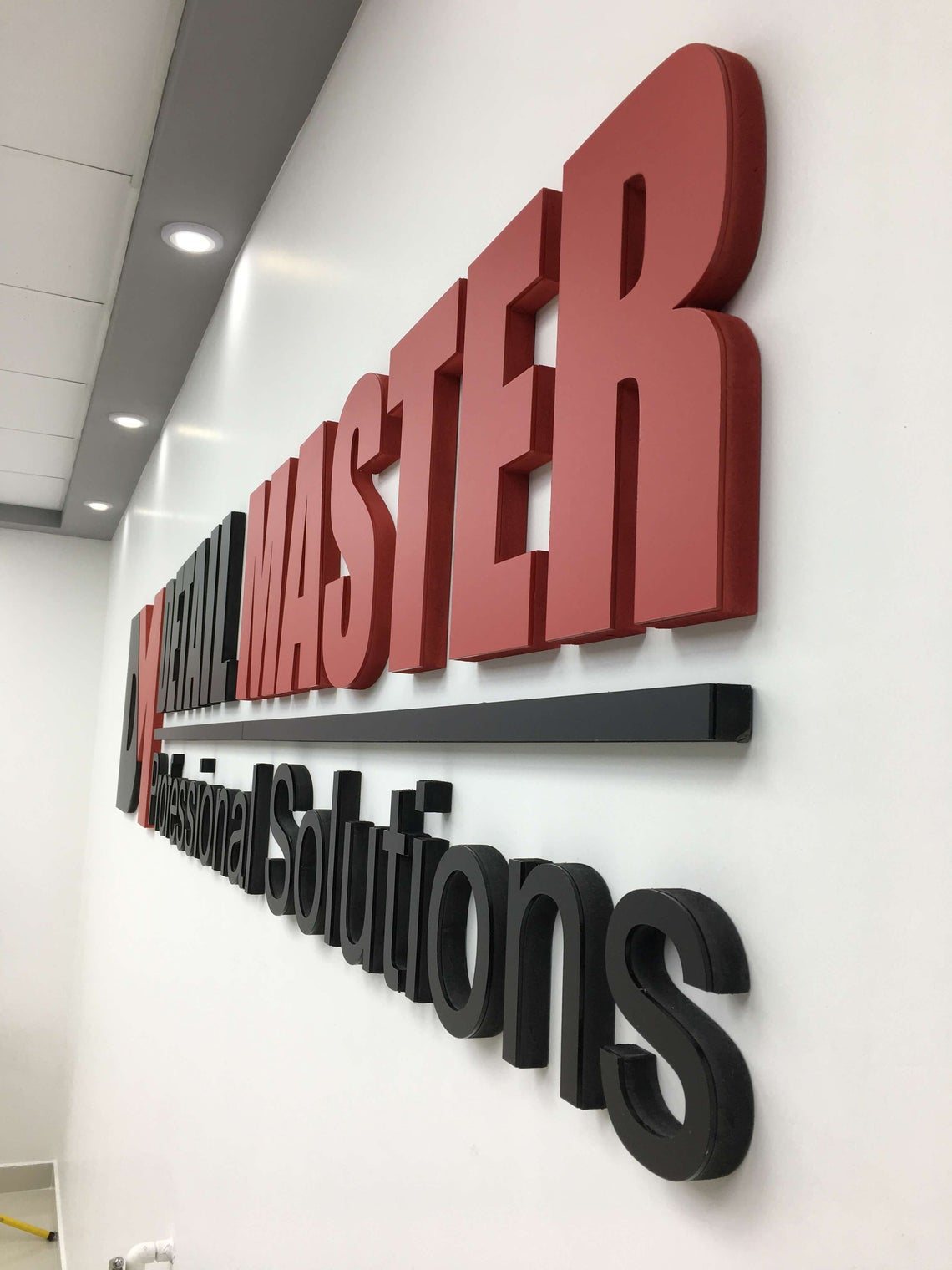

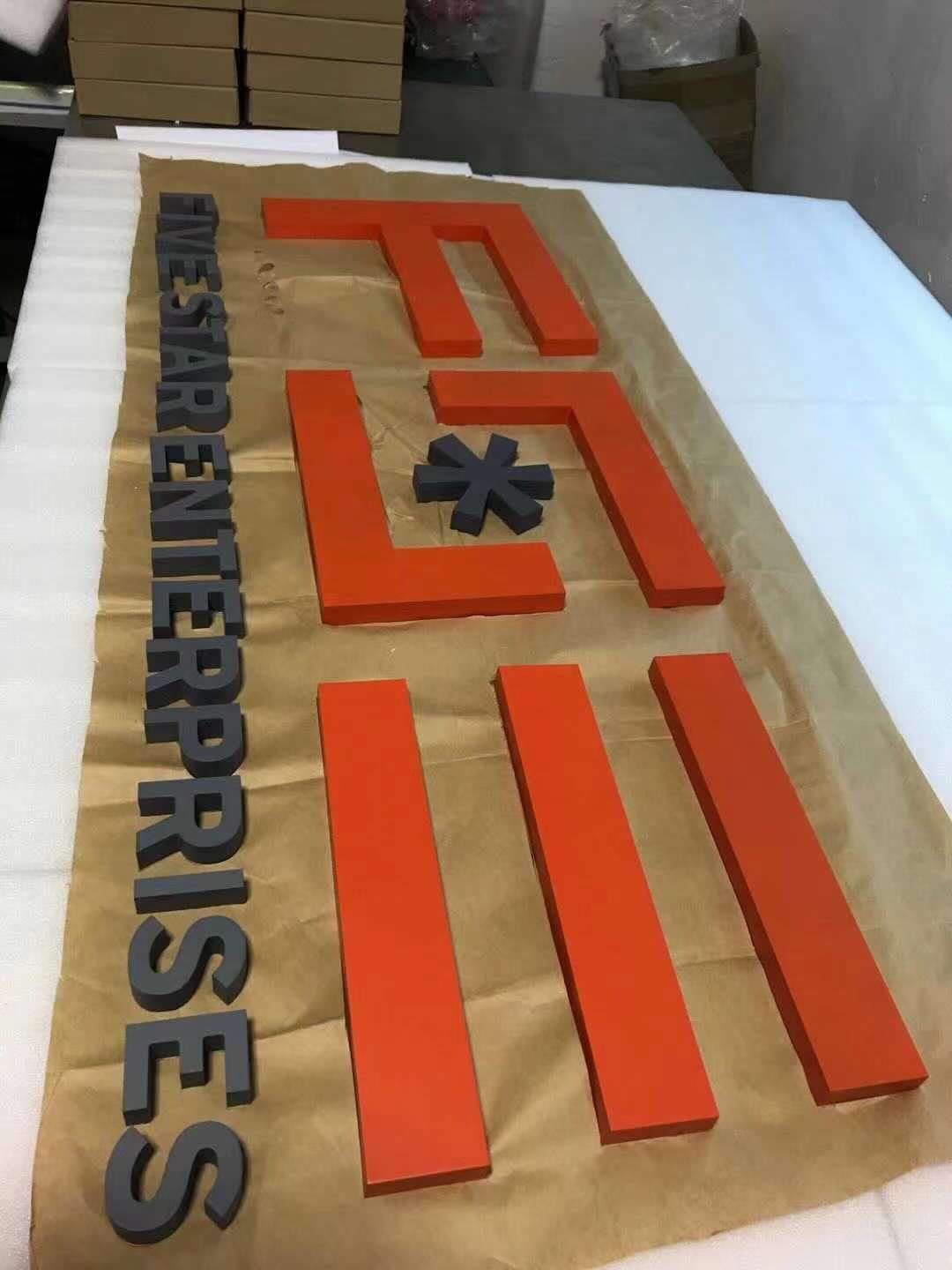

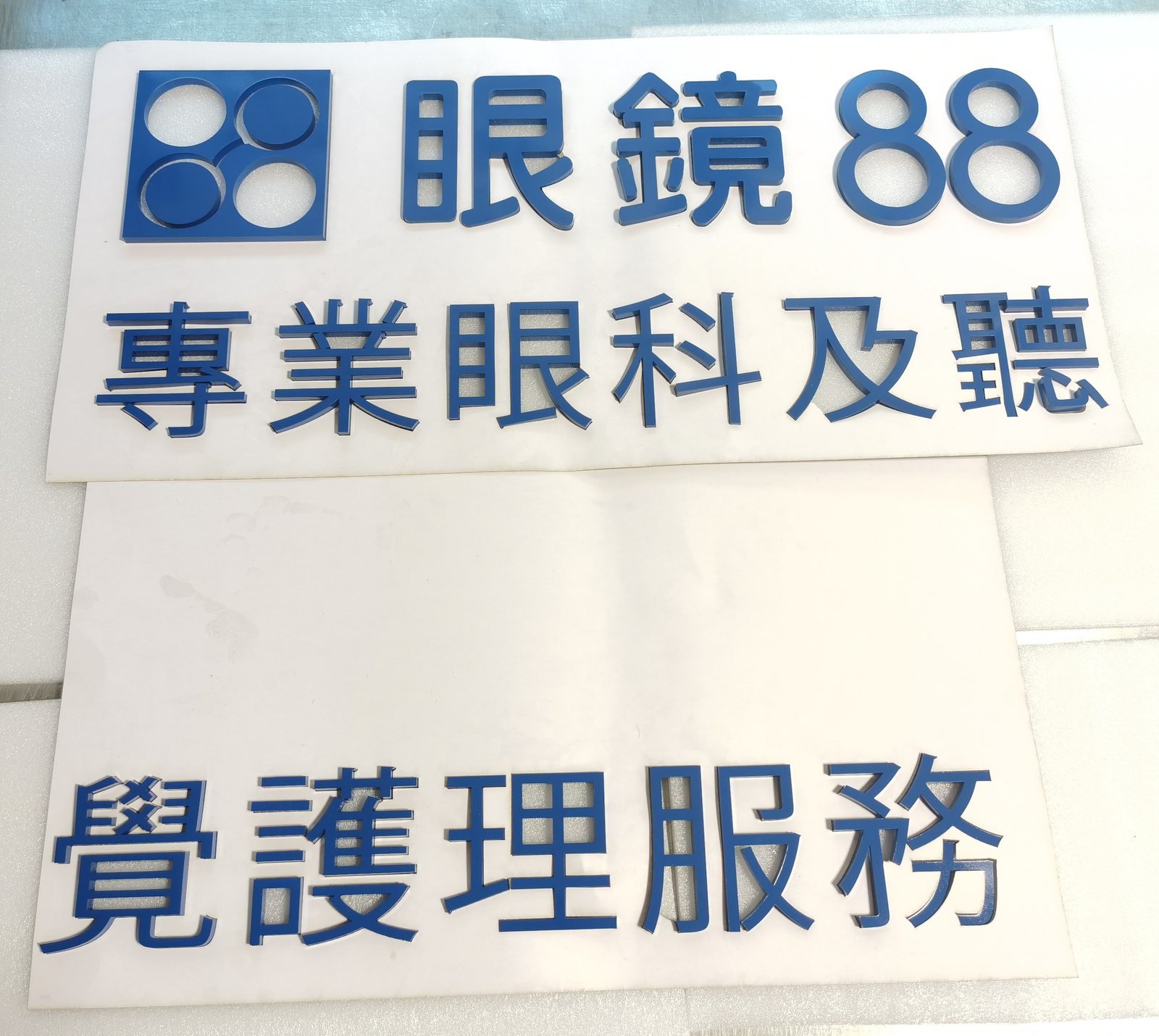

Fabricated painted
Standard channel or pan letters, painted all sides.

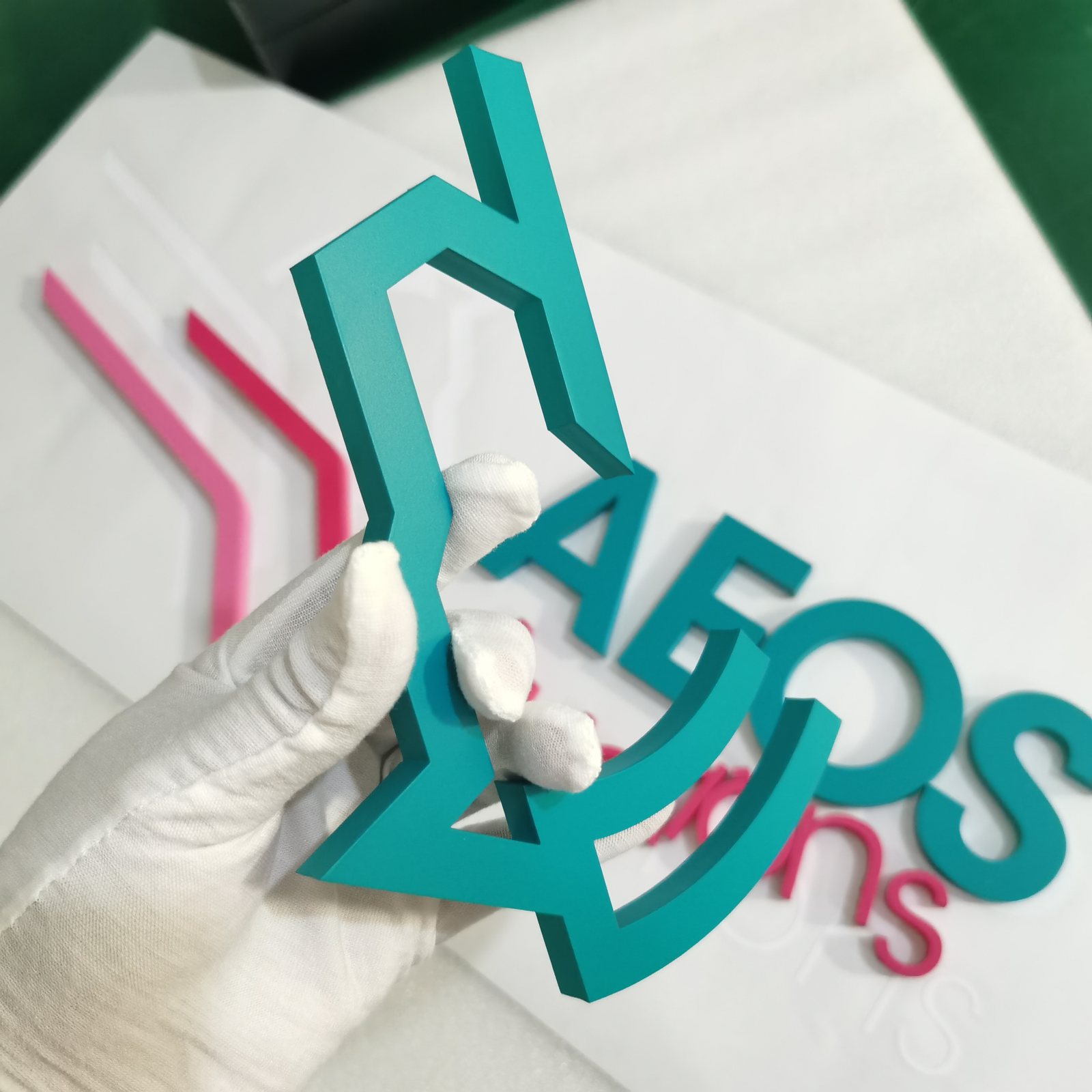

Painted crafts
Smaller dimensional logos and icon marks.

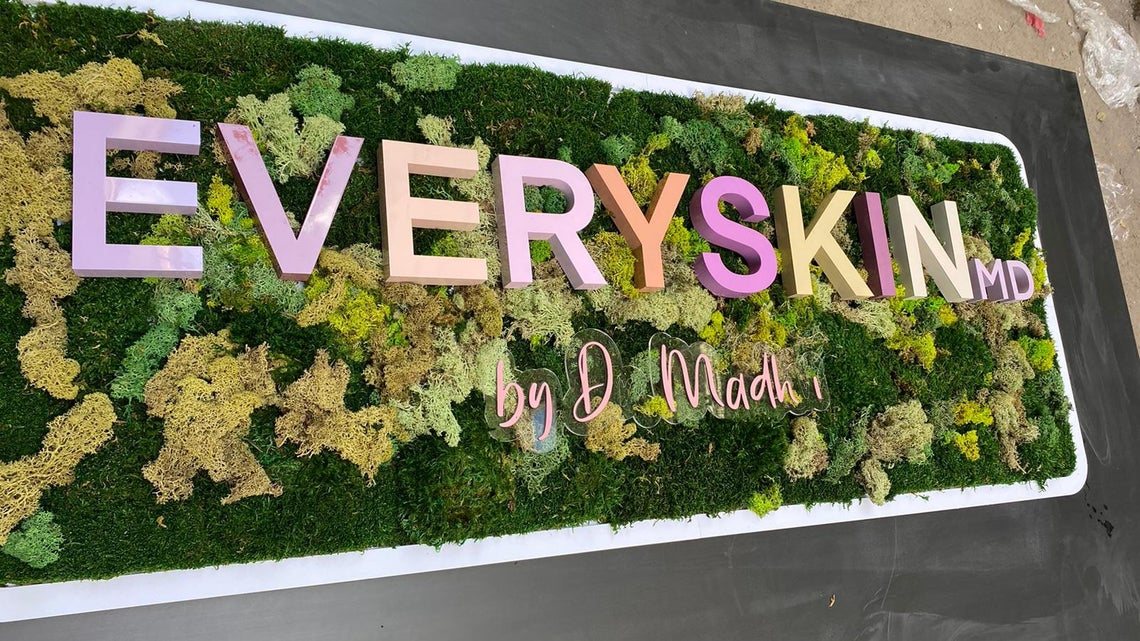

Colourful painted
Multi-Pantone jobs where plating cannot hit the brand colour.
Related projects
FAQ · this product only
How durable is 2-pac outdoors?
We spec a primer + 2-pac system. Coastal jobs should be 316 plus extra clear. Warranty is written on the quote.
Can one letter be two colours?
Yes — face one Pantone, returns brushed or a second colour, as on the 316 sample series.
Do you send colour samples?
Yes, painted chips before production on brand-critical jobs.
Lead time?
Lead time is written on the quote after artwork lock and deposit.
