Viewing Distance vs Capital Height: Shopfront Letter Size Specs

Shopfront lettering fails in public when capital height is chosen from a brand PDF instead of from how far people actually stand, walk, or drive when they first need the name. This lettering note is about outdoor fabricated letters and illuminated channel letters: how viewing distance drives capital height, when to size up for comfortable reading, and how fabrication floors and approach angles force enlargements that a screen mockup never shows. It is not a font-download guide and not an RFQ comparison of letter construction types. Work from licensed brand artwork; keep typeface files out of public posts and share outlined vectors with your fabricator under the brand’s license terms.

Start with the real first-read distance

Before anyone picks a “looks good on the elevation” height, walk the site—or use a site plan and street photos—and write down where the name must first be understood:

• Far sidewalk / opposite curb (often roughly 10–25 m / 30–80 ft for many urban shopfronts)
• Parking-lot decision point (where a driver chooses a bay or entrance)
• Parallel roadway glance (angled view while moving, not a head-on stop)
• Pedestrian close approach (under canopy or at the door—usually secondary to the primary ID height)

Primary fascia letters should be sized for the farthest distance that still matters for finding the store—not for the closest selfie distance. Secondary lines (tagline, “est.”, suite) can drop in height once the name is already readable.

Capital-height rules of thumb (starting points, not codes)

Trade practice widely uses a simple planning rule: about 1 inch (≈25 mm) of capital letter height for every 10 feet (≈3 m) of maximum readable distance under good conditions—high contrast, clean letterforms, direct view, decent light. Sign companies and outdoor-graphics guides commonly teach this as a ceiling for legibility, not a comfort target. Worked examples from that rule:

• About 50 ft (≈15 m) → roughly 5 in (≈125 mm) capitals as a maximum-readability floor
• About 80 ft (≈24 m) → roughly 8 in (≈200 mm)
• About 100 ft (≈30 m) → roughly 10 in (≈250 mm)

United States Sign Council (USSC) research-based guidance also frames letter height with a Legibility Index: for many perpendicular on-premise conditions, an index near 30 means about 1 in of capital height can remain legible near 30 ft under the studied combinations of style, contrast, and illumination. That is a research-derived planning tool, not a municipal permit number. In practice, shopfront programs often size larger than the absolute research minimum so moving viewers, glare, and imperfect contrast still leave a margin.

Maximum readable distance vs comfortable reading distance

Confusing the two is how elegant 6-inch letters end up unread from the lot. Maximum readable distance is the outer edge of legibility for a still viewer looking straight on in good light. Comfortable reading distance—where someone can absorb the name without squinting or slowing—is commonly discussed as roughly 30–50% shorter than that maximum. Outdoor interpretive and commercial guides therefore recommend sizing up about 30–50% when the audience is moving, deciding, or only glancing.

Practical translation for a shopfront:

• If the math says “5 in at 50 ft maximum,” consider 7–8 in when drivers must decide while rolling.
• If the landlord caps letter height below the comfortable size, simplify the wordmark, drop secondary copy, or accept that the primary ID only works from closer approach—and document that trade-off before fabrication.

Approach angle shrinks the effective height

Shopfront letters are often read from the side: parking rows, arcade walkways, or a roadway parallel to the fascia. Horizontal viewing angle narrows as you get closer; a set that reads from the far lane can merge into a dark bar when you are almost under the canopy. Fabricators and sign designers repeatedly note that wider stroke weights widen the usable horizontal angle, while narrow-stroke or ultra-condensed wordmarks lose identity fastest at oblique views.

When the primary approach is parallel or steeply angled:

• Prefer open counters and medium-to-bold stroke relative to capital height
• Avoid packing the entire legal name plus tagline on one crushed line
• Test a full-scale paper or vinyl mockup from the actual approach path, not only from a head-on camera position

Fabrication floors can force you to enlarge

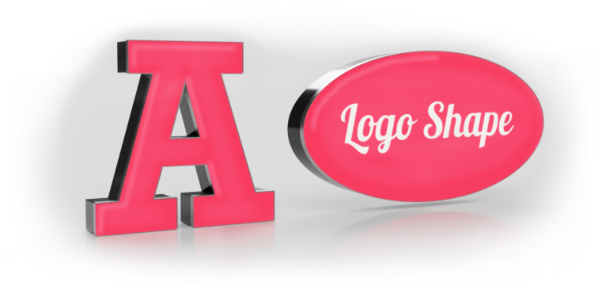

Distance math is necessary but not sufficient. Illuminated channel letters need enough stroke and internal volume for modules, wiring, and face retention. Wholesale and shop guidance commonly flags roughly 1.5 in (≈38 mm) minimum stroke for many LED-illuminated channel builds, and notes that sets under about 8 in (≈200 mm) capital height often include at least one counter or stroke that is too tight to light evenly—shops then thicken or redraw the outdoor master before production. Exact minima vary by process (trim-cap vs trimless, module size, return depth); treat published shop floors as conversation starters and confirm on the shop drawing.

Implication for sizing: if brand artwork at a “code-allowed” small height leaves strokes below the shop’s LED floor, you either enlarge capital height, thicken strokes for an outdoor master, or move thin details to a non-illuminated secondary line. Do not assume a print logo at 200% will light cleanly at 6 in on the wall.

Contrast, illumination, and style as height modifiers

Letter height charts assume good contrast and clean forms. Real façades push you larger when:

• Contrast is weak — dark letters on dark brick, pale letters on pale stucco, or busy stone that breaks edges
• Day shadows fight the faces — deep returns casting shadows wider than the stroke can hide thin forms
• Night bloom softens edges — face-lit faces that are too milky, or halo glow that dissolves thin outlines
• Style is high-contrast or script-like — hairline parts and tiny counters demand more height or a fabrication redraw

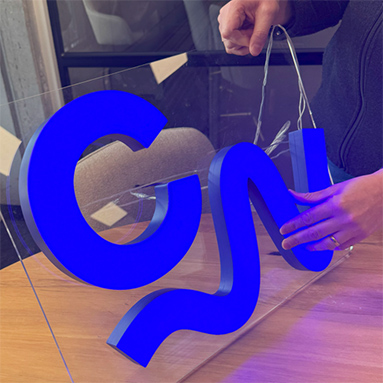

Face-lit letters usually win long-distance night identification because the glowing face is the figure. Halo / reverse-lit forms can look premium up close on a light wall but often need more careful height and spacing so the bloom does not erase counters. Size the capitals for the identification job first; choose lighting mode as a readability tool, not only as a mood board.

Landlord bands, ordinances, and proportional scale

Capital height is constrained by sign area rules, fascia band height, and landlord criteria as often as by viewing distance. When the allowed band is shorter than the comfortable-height calculation:

1. Shorten the message (store name only; move extras to window or blade signs)
2. Use two lines with carefully balanced line gap instead of one ultra-condensed line
3. Raise contrast (face/return/backer strategy) before you try microscopic height
4. Document the residual risk: “Readable from curb X; not intended as far-lane ID”

Also keep building proportion in view. Oversized letters on a tiny bay look clumsy; undersized letters on a wide setback disappear. The goal is the smallest height that still delivers comfortable reading at the critical distance—not the largest number the ordinance theoretically allows.

Electrical note when letters are illuminated

Name the destination country on the electrical notes. Building mains are typically about 230 V AC in the European Union, United Kingdom, and Australia, and about 120 V AC in the United States—confirm with the site electrician. LED modules and drivers inside letters are a separate low-voltage DC design (shops often discuss 12 V or 24 V DC—confirm; do not mix on one circuit). Letter-height decisions and electrical notes belong on the same package, but height choice is not a whole-sign conformity mark for any market.

Copy-paste sizing brief

Fill and attach to the design package:

1. Primary first-read distance: ___ ft / ___ m (describe viewpoint: curb / lot / roadway)
2. Approach: head-on / parallel / mixed; note steep angles
3. Target capital height from distance rule: ___ in / ___ mm (state which rule used)
4. Comfortable-read uplift applied? yes/no — final proposed height: ___
5. Landlord / ordinance max height and max area: ___
6. Wall / fascia color and material photos attached
7. Illumination intent: non-illuminated / face-lit / halo (readability rationale in one line)
8. Thinnest stroke at proposed height: ___ mm; shop LED/forming floor confirmed: ___
9. Counters checked at full scale: open / need outdoor master redraw
10. Destination country: ___ ; mains approx. 230 V AC (EU/UK/AU) or 120 V AC (US)
11. Mockup: paper/vinyl full-scale from approach path before metal cut

Takeaway

Capital height is a viewing-distance specification first and a style preference second. Use the 1-inch-per-10-feet planning rule—and USSC-style legibility indexes where your team already works with them—as starting math, then size up for comfortable reading, oblique approach, weak contrast, and fabrication stroke floors. When the band is too short, simplify the message rather than crushing the alphabet. A shopfront name that is readable at the real first-read distance is doing its job; ornament that only works at arm’s length belongs indoors or in print.
