Trimless (also called rimless) channel letters trade the classic trim-cap ring for a face that meets the metal return edge-to-edge. Close-range retail façades love the cleaner daytime silhouette; long-distance road signs often do not need the premium. This guide is an RFQ checklist for that build—files, size window, face–return joint, site mains, and LED DC—so your quote package matches what a fabrication shop can actually cut and light.
What “trimless” must mean on the RFQ

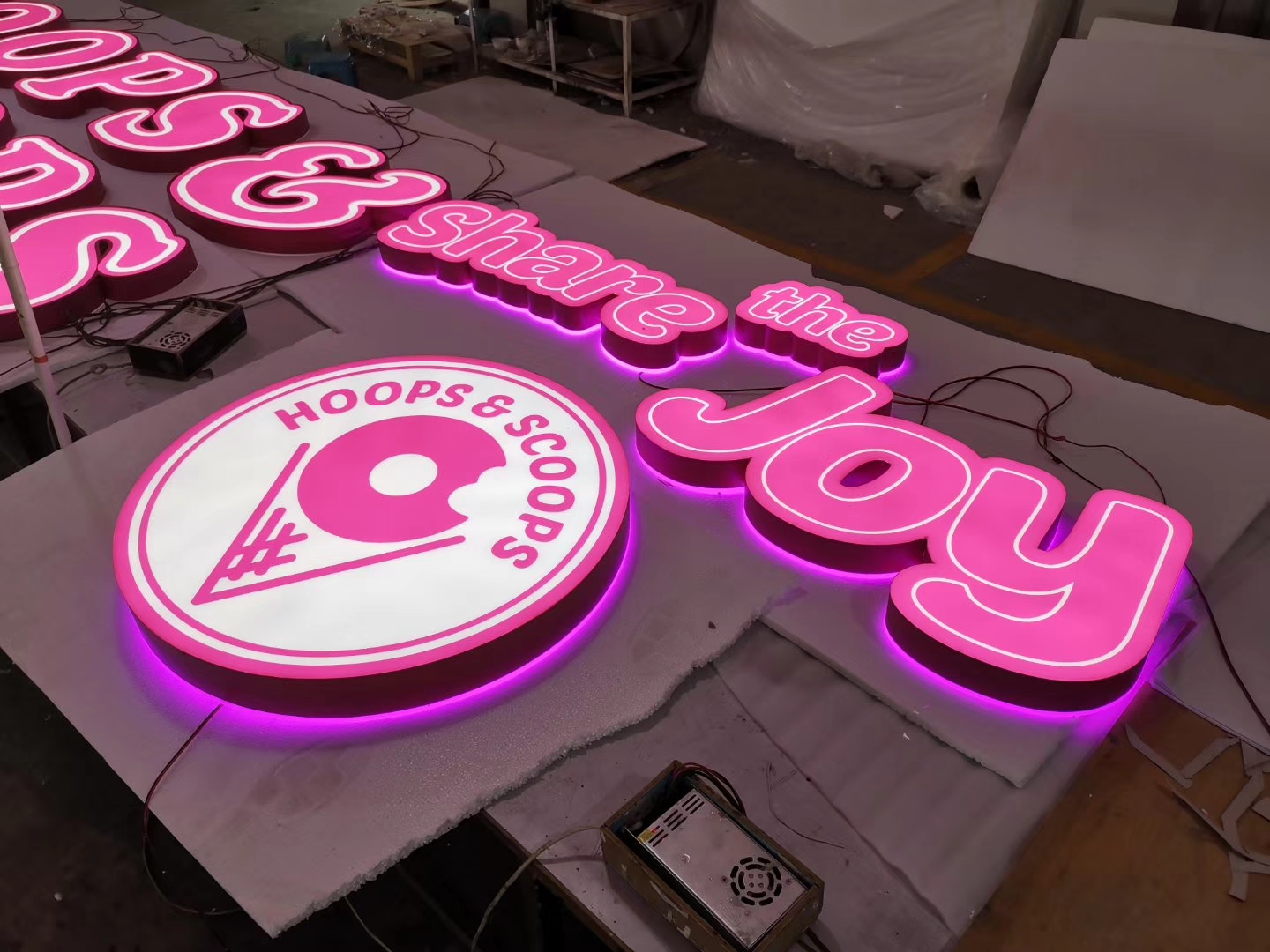

Write the construction in plain shop language: no visible trim cap; acrylic or polycarbonate face seated flush to the return; sealed, light-tight joint so daytime seam lines stay minimal and night glow does not leak at the edge. Name the look you want—face-lit trimless is the usual ask; halo or reverse-lit builds are a different lighting path and should not be conflated with “seamless face.” Daytime seam visibility and night face uniformity are both acceptance criteria; ask the fabricator for a face-to-return joint close-up on a sample letter before you lock production.
Trade pages that document trimless front-lit builds typically call out metal returns, acrylic faces in the five-to-eight millimetre class, and installation-ready hardware. Treat those as construction notes, not as a certificate that the finished letters are listed as a complete sign product.
When trimless earns the premium
Trimless pays off when pedestrians and drivers read the brand from a short to medium distance—plaza shopfronts, lobby portals, and brand façades where the absence of a trim ring is visible in daylight photographs. For highway-scale copy or landlord packs that already accept standard trim-cap face-lit letters, a conventional capped build is often enough and easier to service. If the brand book demands a “rimless” render, put that word on the RFQ and attach a daytime elevation so the shop does not substitute a trim-cap set by habit.
Size window to state up front
Industry trimless guidance commonly lands in a practical capital-height band around six to twenty-eight inches for clean faces and reliable module pitch. Letters above roughly forty-eight inches usually need internal reinforcement, thicker returns, or a segmented face plan—ask the shop to confirm the method before drawings go final. Always state capital height(s), overall word length, minimum stroke width, and return depth. Narrow strokes force module choices and can defeat the “even face” promise of trimless lighting; if a stroke is under the shop’s LED pitch floor, redraw the outdoor master rather than hoping modules will hide thin joins.
Artwork and files
Send outlined vectors only: AI, EPS, PDF, or SVG with fonts converted to paths. Include capital height, overall length, minimum stroke, Pantone or RAL for faces and returns, and an elevation that shows letter spacing. Do not ask the factory to “download a font” or interpret a low-resolution PNG as the master. If the logo mixes metal-look strokes with acrylic faces, mark which characters are trimless channel letters versus flat-cut or solid fabricated pieces so pricing and packing stay honest.
Face and return construction
Typical face materials are cast acrylic for optical clarity or polycarbonate where impact resistance matters. Return material and finish (aluminium powder coat, stainless grade, colour match) belong on the same line as face thickness. The sealed face–return joint is the trimless differentiator: request a joint close-up photo and a lit sample photo before mass production. Outdoor jobs should state IP intent for the complete letter assembly—not a module badge alone—and whether drain holes or gasket plans are required for monsoon or wash-down sites.
Power: separate site mains from LED DC
Every RFQ must split voltages clearly. Site mains follow the export destination: European Union, United Kingdom, and Australia crates use 230 V / 50 Hz; United States crates use 120 V / 60 Hz unless the quote explicitly names 277 V. Inside the letters, LED modules run on a low-voltage DC bus—commonly 12 V or 24 V constant voltage. Never mix 12 V and 24 V modules on one circuit. Name driver location (remote ventilated box versus raceway), cable run length, wet or damp rating, and that module recognition marks are not the same as listing the assembled sign to a finished-product standard.
Singapore and Malaysia jobs reuse the 230 V / 50 Hz family. Japan jobs need 100 V with 50 Hz or 60 Hz by prefecture; Korea jobs need 220 V / 60 Hz. Those destinations have no default row on the public export build sheet, so the RFQ must name them explicitly.
Mounting and service without killing the seamless look
State flush stud, spacer, or raceway mount; wall type; penetration plan; and how a face or module is replaced without destroying the flush joint. Raceways simplify landlord wiring reviews but change the daytime silhouette; flush studs look cleaner and need clearer service instructions. If the letters ship supply-only, say so—local install and listing paths stay with the destination electrician.
Copy-paste RFQ block
- Build: trimless / rimless face-lit channel letters; no trim cap; acrylic or PC face flush to return.
- Sizes: capital height(s), overall length, minimum stroke, return depth; confirm reinforcement if height exceeds shop window.
- Files: outlined AI/EPS/PDF/SVG; Pantone/RAL face and return; elevation with spacing.
- Joint QC: face-to-return close-up photo + lit sample before production.
- Mains: EU/UK/AU 230 V 50 Hz or US 120 V 60 Hz (or JP 100 V / KR 220 V if named); LED DC 12 V or 24 V—single family per circuit.
- Outdoor: complete-letter IP intent (typical IP65); drain/gasket notes; crate voltage stencil + pack list.
- Mounting: flush stud / spacer / raceway; wall type; supply-only vs install.
- Compliance tone: UL-recognized modules/drivers when the job needs them; no default claim that assembled letters are CE, UL 48, or RCM listed.
Align crate marks with the public export build sheet before acrylic and stainless cut. That keeps voltage labels, IP language, and packing photos consistent across EU, US, and ASEAN destinations without over-claiming certificates on the finished letters.
