Front-Lit vs Reverse-Halo Channel Letters: RFQ Construction Spec

Front-lit and reverse-halo (halo) channel letters often share routers and return formers, then diverge in how the can is closed, how light leaves the letter, and what the RFQ must freeze before metal is cut. Buyers who only write “illuminated channel letters” force estimators to guess face retention, back access, standoff and service path. This guide separates the two constructions in RFQ language, lists what to put on a copy-paste sheet, and keeps electrical handoff honest: name the destination country; European Union, United Kingdom and Australia sites typically plan around approximately 230 V AC mains; United States sites typically plan around approximately 120 V AC mains. Low-voltage LED circuits inside the letters are a separate specification from the building branch circuit.

What “front-lit” and “reverse-halo” mean on a drawing

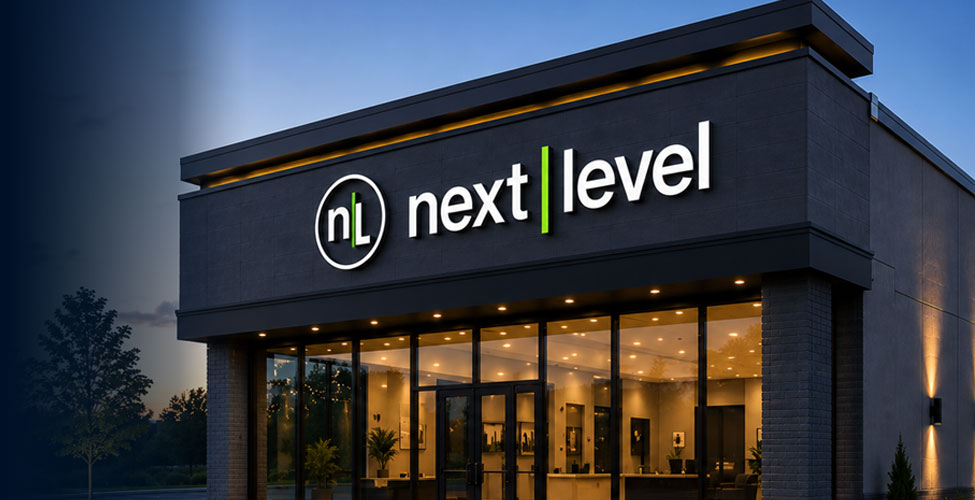

A front-lit channel letter pushes light through a translucent acrylic or polycarbonate face. Aluminum or painted returns form the can depth; a trim cap or trimless face retention system holds the face; LEDs sit inside behind the face. Daytime colour is mostly the face (and trim); night colour is the illuminated face.

A reverse-halo letter uses an opaque front—commonly painted aluminum—so light does not exit forward. LEDs fire toward a clear or frosted rear cover; the glow washes the wall around the letter. Standoff distance from wall to letter back becomes part of the night look. Daytime colour is the painted metal silhouette; night colour is the wall wash plus any spill into counters.

Combination face-and-halo packages need both stories on the RFQ: face material and retention, plus halo standoff and rear diffusion. Do not write one “depth” number and hope the shop knows whether you meant return depth or wall gap.

Construction forks that belong on the RFQ

Trade production notes (for example Ascent Equipment’s October 2026 front-lit versus reverse-halo workflow) show a practical split many shops recognise:

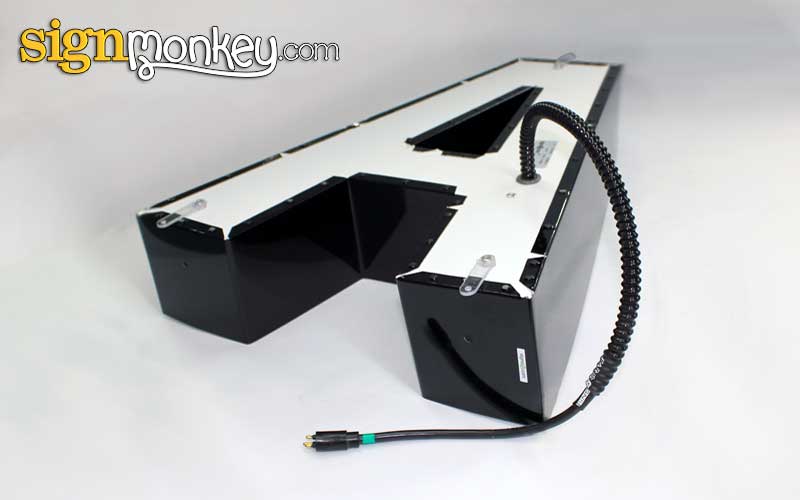

• Front-lit: routed faces and backs; formed returns often with a flange; trim formed or bought for the face edge; back fastened so the face can still come off for service.
• Reverse-halo: opaque front joined to returns (welded or otherwise closed); polycarbonate or similar rear cover held with brackets and screws so LEDs can be serviced without cutting the front; flat returns without a front-lit-style face flange.

Treat those as planning language for RFQs—not a claim that every fabricator uses the same machines. Ask each bidder which join method, face retention and back access they will actually build for your heights and strokes.

Return depth vs halo standoff

Return depth is the can height from back to face plane (or trim seat). Halo standoff is the gap between letter back and wall. Front-lit letters still need a stated return depth even when trimless. Reverse-halo letters need both return depth (for modules and wiring) and a stated standoff (often roughly 12–25 mm / about ½–1 inch in planning talk—confirm on shop drawings). Combination letters need four separate lines: face type, face retention, return depth, halo standoff.

Faces, backs and service access

Front-lit faces: call acrylic versus polycarbonate, thickness target, diffuser needs and whether faces are removable. Trim colour and retainer type belong here (see this week’s materials note on aluminum versus plastic retainers).

Reverse-halo backs: call clear versus frosted polycarbonate, scuff or diffusion intent, bracket materials and screw access. Because the front is often closed, the back is the service door—say so explicitly if night ID must stay maintainable without cutting metal.

Stroke and height interact with both styles. Thin strokes leave less room for modules in front-lit cans and erase faster under halo bloom. Put smallest stroke and capital height on the RFQ with outlined vectors.

Voltage handoff (three lines, always)

1. Building mains for the named country (approximately 230 V AC in much of the EU, UK and Australia; approximately 120 V AC in the US)—confirmed by the site electrician.
2. LED DC inside letters (shops often discuss 12 V or 24 V DC—confirm; never mix on one circuit).
3. Driver location: remote, raceway or approved enclosure with a stated max cable run.

Illumination style does not replace electrical design. Deeper cans, denser faces and bright halo washes change wattage and driver count. Request estimated watts, outdoor IP intent and controls. Ask for component documentation relevant to the destination country; a licensed local electrician completes final connection and inspection. Do not write whole-sign CE, UL or RCM claims into the RFQ as a substitute for parts-level documentation.

When to demand shop drawings

Require drawings before production when style (front-lit / halo / combo) is still open; when heights or strokes sit near a fabricator’s envelope; when halo standoff is brand-critical; when landlord criteria cap projection; or when mixed depths appear. Drawings should show return depth, face retention, rear cover detail, LED colour or CCT, overall projection including standoffs or raceway, and mounting method. Night renders alone do not lock construction.

Copy-paste RFQ takeaway

1. Project / site address and destination country
2. Mains: EU/UK/AU approximately 230 V AC, or US approximately 120 V AC (confirm with site electrician)
3. Letter type: front-lit / reverse-halo / combination (price separately if undecided)
4. Face retention (front-lit or combo): trim cap (trim colour) / trimless
5. Face material and thickness target; opaque front finish for halo
6. Return depth target (mm and in)
7. Halo standoff if reverse-lit or combo (separate from return depth)
8. Rear cover: clear / frosted / scuffed; bracket/screw service access
9. Smallest stroke; letter heights; overall length; outlined vectors; brand colours
10. LED colour/CCT; outdoor IP intent; LED DC preference if known
11. Driver location; estimated cable run; controls
12. Mounting: flush stud / raceway / other
13. Wall / fascia colour photos (critical for halo)
14. Shop drawings before production; lit QC photos; packing; lead time; warranty scope; delivery terms
15. Supply only vs supply-and-install; final electrical connection by licensed local electrician

Shop-floor takeaway

Spec front-lit and reverse-halo as different products that happen to share a channel-letter vocabulary. Freeze face path versus wall-wash path, return depth versus standoff, and the three electrical layers on one RFQ page. When construction, lighting and country voltage share that page, bidders price the same letter—and the shopfront lights the way the drawings promised.
