Mounting method decides how many holes go into a shopfront wall, where drivers live, how letters get serviced, and whether a landlord will approve the package. For illuminated channel letters, the two most common exterior choices are flush stud (direct) mount and raceway or wireway mount. This guide helps buyers and project coordinators pick a method, state it clearly on a request for quotation (RFQ), and keep letter type, wall build-up, and electrical handoff aligned. Name the destination country on every RFQ: European Union, United Kingdom, and Australia sites typically plan around 230 V AC mains; United States sites typically plan around 120 V AC mains. Low-voltage LED circuits inside the letters are a separate specification from the building branch circuit.
What flush stud and raceway mounting actually mean

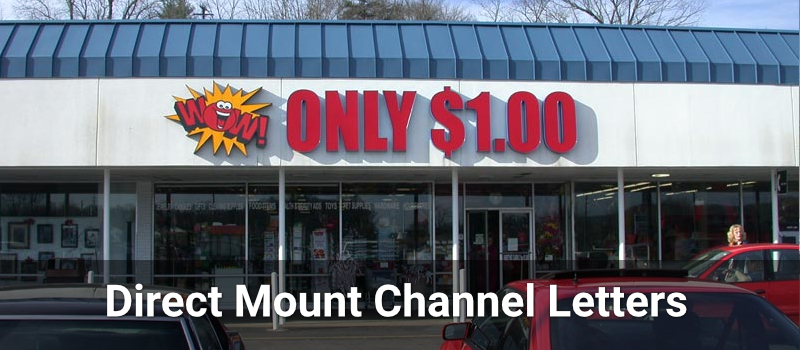

Flush stud mount (also called direct mount) puts each letter on the façade with studs, clips, or similar hardware and a full-size template for alignment. Power wires typically fish through individual penetrations into a cavity, soffit, attic, or remote enclosure behind the wall. The visual payoff is letters that sit on the architecture with no continuous metal box behind them—often the “clean” look brand guidelines assume.

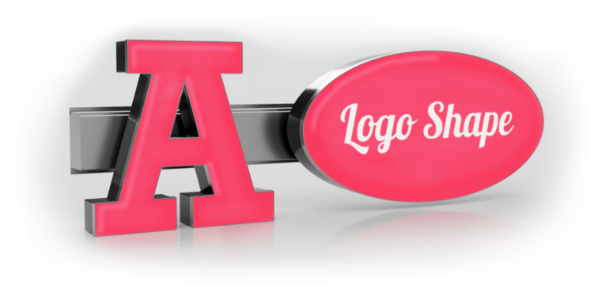

Raceway (or wireway) mount attaches letters to a slim metal enclosure that also houses much of the wiring and frequently the LED drivers. The raceway bolts to the wall as one pre-wired assembly (or a short run of plug-together sections on longer signs). Installers usually drill far fewer holes: mounting points for the raceway plus a primary power feed, instead of stud and wire holes behind every glyph. The trade-off is a visible housing—usually painted to match the wall or a dark neutral—sitting a few centimetres proud of the surface.
Wireway language varies by shop. Some treat “wireway” as a shallower raceway used mainly to collect conductors; others use the words interchangeably. On the RFQ, write the behaviour you need: “letters pre-mounted on a painted aluminum raceway with drivers inside” or “flush stud mount with remote drivers behind the wall,” rather than relying on a single jargon word.
When flush stud mount fits
Choose flush stud when the brand wants letters floating on the wall with no visible housing, the substrate can take individual anchors, and electrical access behind the sign band is realistic. Solid masonry, CMU, and many hard-coat stucco walls are common flush candidates when the local installer can seal every penetration correctly. Flagship retail and professional-service façades often prefer this look for face-lit or halo letters.
Flush is harder when the wall is EIFS or foam-backed synthetic stucco, thin metal panel, open framing, or a leased band where the landlord limits penetrations. Each letter can need multiple fasteners plus a wire path; a multi-letter wordmark can mean dozens of sealed holes. Halo (reverse-lit) letters also need intentional standoff—typically on the order of roughly 12–25 mm (about ½–1 inch)—so the wall wash has room; flush studs with spacers are common, but the RFQ must say so. Dark or heavily textured walls mute halo glow; light, smooth walls show it best.
When raceway or wireway mount fits
Raceway mount fits leased strip centres, turnover-sensitive landlords, walls with limited rear access, and schedules that favour one pre-wired lift. Fewer penetrations reduce water-intrusion points and make future removal cleaner when a tenant leaves. Service access is often from a raceway lid on the exterior, which helps when attic or drywall access behind the fascia is poor.
Raceway also works with face-lit, halo, and combination face-and-halo letters when the shop designs letter backs and standoffs for the raceway face. Halo on raceway still needs clearance for the rear glow; many assemblies use the raceway depth as part of that geometry—confirm on shop drawings. Ask for raceway finish colour (match wall or brand-approved dark), overall depth (letters plus raceway), section breaks on long signs, and whether drivers sit inside the raceway or in a remote enclosure.
Budget is not one-directional. Fabrication and shipping often cost more for a rigid pre-assembled raceway; field labour and equipment hours often cost less than letter-by-letter flush wiring. Ask quotes to separate fabrication, shipping, and install assumptions so you are not comparing a raceway supply-only price to a flush supply-and-install price by accident.
How mounting interacts with letter type
- Face-lit channel letters: Flush or raceway both work. Flush maximises the floating face; raceway speeds wiring and landlord reviews. Spec face material, return depth, trim-cap vs trimless, and LED colour or CCT the same way either way.
- Halo / reverse-lit letters: Prefer flush with defined standoffs on a light wall when the architectural silhouette is the brand story. Raceway is still valid when penetrations are restricted—state required halo gap and wall colour photos on the RFQ.
- Mixed programs: Primary exterior wordmark on raceway for landlord compliance, secondary mark flush indoors, or the reverse—list each line separately so shops do not assume one mount for the whole package.
Landlord constraints, penetrations, and wall type
Read the lease sign criteria before locking artwork. Many multi-tenant property managers prefer or require raceway specifically to protect the building envelope and simplify make-good at lease end. Municipal permits are separate: wind load, projection, and electrical rules vary by city, so the RFQ should note who will pull permits and who completes final electrical connection.
Send wall photos and a one-line substrate note: brick, CMU, hard-coat stucco, EIFS, metal panel, ACM, curtain wall, or wood. For EIFS and thin panels, ask whether raceway, backer panel, or structural blocking is required before anyone builds flush stud letters that cannot be hung as drawn. Ask every bidder how many façade penetrations their proposed method assumes and how sealing is handled at each point.
Wiring, service access, and voltage handoff
Keep three electrical ideas separate on the page:
- Building mains for the named country (approximately 230 V AC in much of the EU, UK, and Australia; approximately 120 V AC in the US)—confirmed by the site electrician
- LED DC inside letters (commonly 12 V or 24 V DC—confirm with the fabricator; never mix on one circuit)
- Driver or power-supply location: inside raceway, remote behind wall, or in an approved enclosure with a stated max cable run
On flush packs, service often means accessing drivers behind the wall or removing letter faces; on raceway packs, service often means opening the raceway. Ask for estimated watts, headroom, outdoor IP intent for modules and joints, and controls (switched, photocell, timer, or dimming). Do not treat a whole assembled sign as if a single factory mark covers every market; request component documentation relevant to your country and have a qualified local electrician complete final connection and inspection.
When window or acrylic-board packages avoid façade penetrations

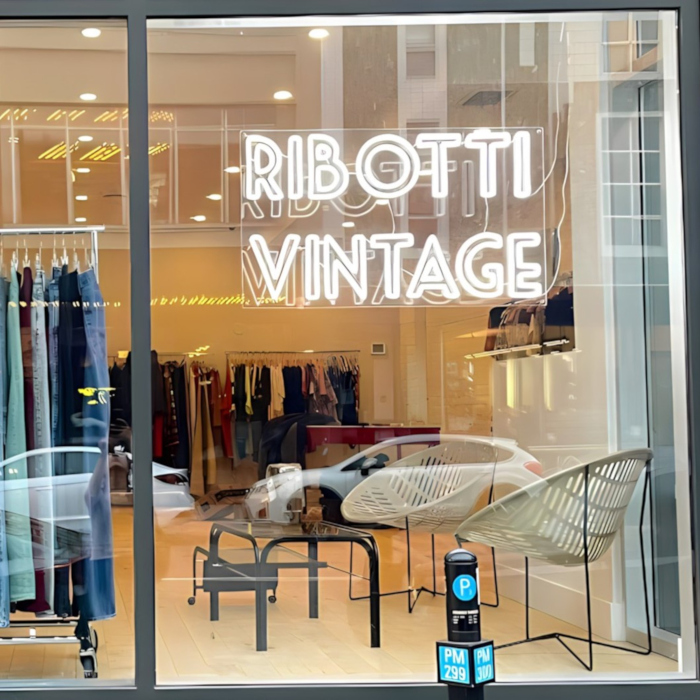

If the landlord blocks exterior wall holes entirely, or the brand moment is pedestrian rather than street-facing, a window-mounted package can carry the night identity without drilling the façade. Traditional glass neon or LED neon flex on a clear or coloured acrylic board, hung inside the glass or on standoffs inside the window bay, typically needs only interior power—no stud pattern through EIFS or brick. These packages do not replace large primary channel letters on a highway fascia; treat them as window or secondary brand tools. Say on the RFQ whether the neon or flex package is instead of exterior channel letters or in addition to them.
Copy-paste RFQ takeaway
Fill every blank and send the same sheet to each supplier:
- Project / site address and destination country
- Mains: EU/UK/AU approximately 230 V AC, or US approximately 120 V AC (confirm with site electrician)
- Sign role: primary exterior ID / secondary / window / interior
- Letter type(s): face-lit channel / halo reverse-lit / both (price separately if undecided)
- Mounting method for each line: flush stud (direct) / raceway or wireway / backer panel / window acrylic board
- Wall or glazing type; EIFS or thin-panel notes; landlord raceway requirement yes/no
- Halo standoff dimension if reverse-lit; raceway colour and overall depth if raceway
- Heights, overall length, vector artwork (fonts outlined), brand colours
- LED colour/CCT; outdoor IP intent; LED DC voltage preference if known (12 V / 24 V)
- Driver location (in raceway / remote); estimated cable run; controls
- Expected façade penetration count or “minimise penetrations” instruction
- Shop drawings before production; lit QC photos; packing; lead time; warranty scope; delivery terms
- Supply only vs supply-and-install; final electrical connection by licensed local electrician
Shop-floor takeaway
Pick mounting from landlord rules, wall build-up, and service access—not from a night render alone. Flush stud delivers the cleanest letter silhouette when the wall and lease allow it; raceway protects the envelope and concentrates wiring when they do not. Keep letter type, mount method, and the three electrical layers (mains for the named country, LED DC, driver location) on one RFQ page so every bidder prices the same job. When those choices travel with artwork and site photos, shop drawings stay honest and the shopfront lights without a mid-project remount.
