Cast vs Extruded Acrylic for Letter Faces: Drawing Spec Notes

Illuminated channel letters and lightboxes live or die by the acrylic face: optical clarity, thickness, forming behavior, and how the face is retained against weather. This article is for designers and project coordinators who need drawing-ready material notes—not brand slogans. Focus: cast versus extruded acrylic for letter and lightbox faces, with callouts you can paste into a fabrication package. Confirm every thickness and can gauge with the fabricator’s shop engineering for letter height, span, and wind exposure.

Cast vs extruded: what actually changes on an illuminated face

Both products are polymethyl methacrylate (PMMA). The difference is how the sheet is made, and that difference shows up in optics, machining, forming, and thickness consistency.

Cast acrylic (cell cast) is formed by pouring liquid monomer between glass plates and curing sheet by sheet. Industry manufacturer guidance commonly notes higher molecular weight, low internal stress, less low-angle optical distortion, slightly better chemical resistance, cleaner machining with less melt or chip, a wider thickness range (including heavy gauges), and custom color availability. Cast sheet is the usual shop preference for routed channel-letter faces, laser-visible edges, and deeper thermoformed shapes.

Extruded acrylic is produced continuously through rollers. Manufacturer comparisons typically credit it with lower cost, tighter thickness tolerance, and faster cementing or simple thermoforming. The trade-offs fabricators watch for are more internal stress, a narrower forming temperature window, and edges that may need more finishing after laser or routing compared with cast. Extruded sheet is often chosen for high-volume flat panels and price-sensitive work where thickness consistency matters more than deep forming.

Drawing tip: write the process as well as the polymer. Prefer “cast acrylic face” or “extruded acrylic face” over a vague “acrylic” callout. If the face will be deeply formed or CNC-routed with visible edges, cast is usually the safer default unless the shop documents otherwise.

Optical clarity, UV, and outdoor weathering expectations

Clear acrylic is widely documented as optically excellent—manufacturer literature commonly cites roughly 90%+ light transmission for clear sheet, with cast often described as having slightly less haze and low-angle distortion than extruded in thicker gauges. For outdoor illuminated faces, specify UV-stable sheet intended for exterior signage and state whether the face is clear, opal/diffuser, or translucent color. Acrylic is generally weather-resistant when correctly detailed, but color permanence depends on the pigment system and any vinyl or paint overlay—schedule those separately rather than assuming “outdoor acrylic” covers every decoration layer.

Do not invent a warranty period on the drawing. Ask the fabricator which sheet grade and outdoor color system they stock, and note “exterior UV-stable acrylic per approved shop sample.”

Face thickness ranges shops commonly discuss

These are common practice ranges discussed in trade fabrication—not a universal code minimum. Always confirm with shop engineering:

• Standard front-lit channel letter faces: many shops route faces from about 1/8 in (≈3 mm) or 3/16 in (≈4.5–5 mm) cast acrylic. 3/16 in is frequently preferred for outdoor durability on storefront heights; 1/8 in appears on smaller or lighter builds.

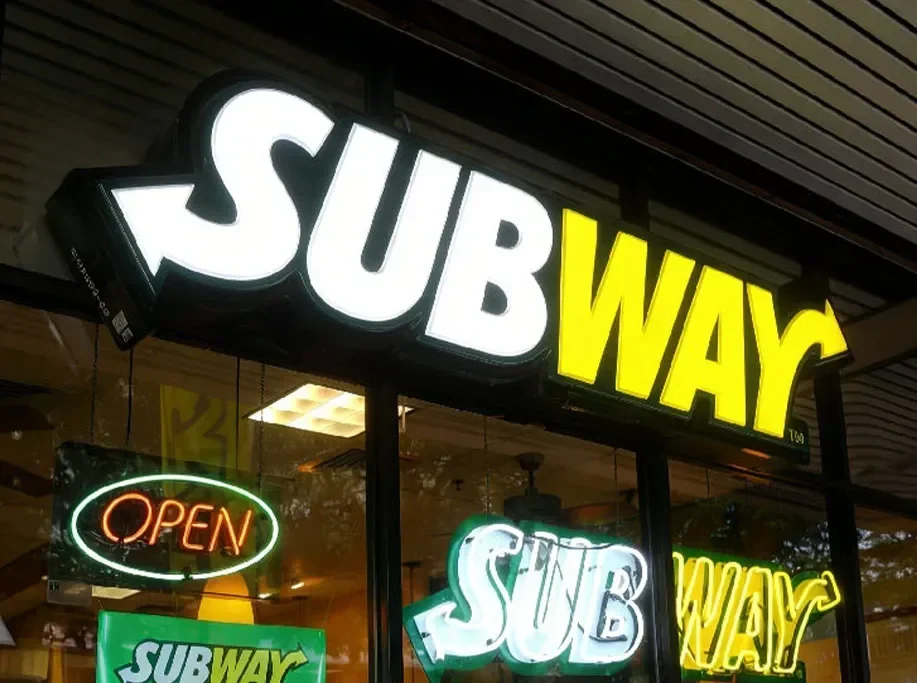

• Lightbox / cabinet faces: fabricators often discuss flat or pan faces in the 3 mm to 5 mm neighborhood for acrylic, with larger spans or higher wind loads pushing thicker sheet or formed pan faces—confirm span tables with the shop.
• Trimless / flush faces: thicker acrylic (shops sometimes discuss roughly 1/2 in / 12 mm and up for routed “top-hat” lips) is common when the face must self-retain without a visible trim cap.
• Push-through acrylic inserts: thick clear or frosted acrylic (shops often discuss 1/2 in to 1 in class inserts) sits in a routed metal cabinet face; that is a different thickness conversation from thin letter faces.

On the drawing, give a target thickness and allow the shop to propose an equal-performance alternate. Never imply one thickness fits every letter height.

Diffuser, color faces, clear + vinyl, and sprayed faces

Pick the face strategy for how brand color and night uniformity are achieved:

• Opal / white diffuser faces: even LED wash; brand color usually comes from translucent vinyl or paint on the face. Default for many white or multi-color programs.
• Translucent colored acrylic: face color is in the sheet. Good when a single solid night color is stable and inventory of that color is available. Note the color reference (Pantone, RAL, or approved sample).
• Clear acrylic + translucent vinyl: flexible for brand matching and reprints; specify vinyl series rated for illuminated faces and outdoor UV where required.
• Sprayed / painted faces: useful for custom translucency or when vinyl edges are undesirable; specify paint system compatible with acrylic and illuminated use, and whether paint is first or second surface.

Write which strategy is approved. Mixing “colored acrylic or vinyl—shop choice” without a night sample often produces mismatched glow between letters.

Aluminum returns and cans that interact with the face

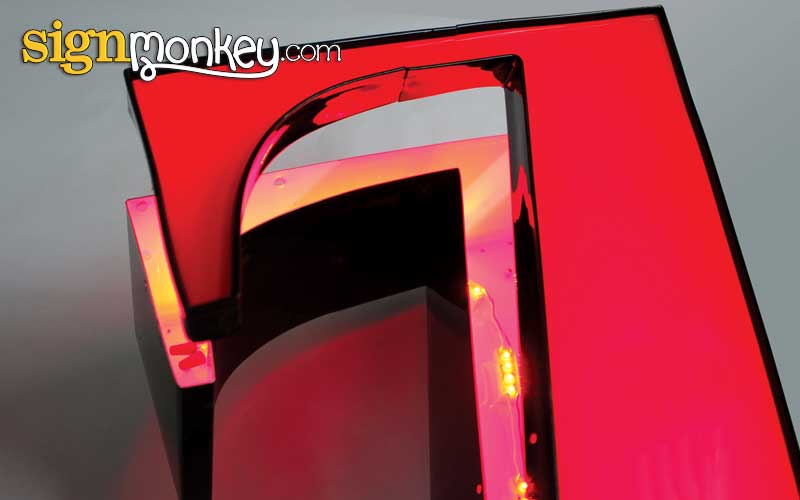

Front-lit channel letters typically use aluminum returns with the acrylic face retained by trim cap or a trimless lip. Trade practice often cites about 0.040 in aluminum coil for standard front-lit returns, with heavier gauges on larger letters or demanding exposures—state a target and require the fabricator to confirm. Return depth for storefront work commonly falls in a roughly 3–8 in (about 75–200 mm) band, with about 5 in (125 mm) frequently discussed as a storefront default; landlord criteria may override.

Lightbox cans and routed cabinets need face retainers, gasketed frames, or formed pan lips sized for the acrylic thickness you scheduled. If the same elevation mixes acrylic-faced channel letters with stainless or painted-metal accents, schedule each material by elevation rather than writing a single “metal and acrylic letters” line. (Grade selection for coastal stainless is a separate materials topic—keep that callout on the metal schedule.)

Expansion, weep/drain, and gasket / trim-cap notes

Acrylic expands and contracts more than aluminum. Manufacturer sign-fabrication guidance commonly cites a linear expansion coefficient on the order of about 0.000040 in/in·°F (about 0.000072 in/in·°C)—enough that large lightbox faces need designed edge engagement and clearance so winter contraction does not drop a face and summer heat does not bow or oil-can it. Channel letters are smaller, but still need faces installed without forced bowing inside the trim.

Put these notes on outdoor packages:

• Allow thermal movement at face retainers; do not rigidly pin large faces mid-span without an engineered backup or hanging strategy.
• Provide weep / drain paths at low points of letter cans and lightbox cabinets so water cannot trap behind the face.
• Specify UV-stable trim cap (common trade widths include about 3/4 in, 1 in, and 2 in) or trimless retention detail; seal joints with acrylic-compatible sealants only—incompatible solvents and gaskets can craze PMMA.
• Require a gasket or retainer system that keeps water out of LED compartments while still allowing the documented drain strategy.

Illumination and voltage notes (when the face is lit)

Name the destination country on the electrical notes. Building mains are typically about 230 V AC in the European Union, United Kingdom, and Australia, and about 120 V AC in the United States—confirm with the site electrician. LED modules and drivers inside letters or cabinets are a separate low-voltage DC design (often 12 V or 24 V DC in shop practice—confirm; do not mix voltages on one circuit). Keep material face notes and electrical notes on the same sheet set, but do not treat a material choice as a whole-sign conformity mark for any market.

Sample material schedule block

Copy and adapt:

1. Sign type: front-lit channel letters / lightbox cabinet / push-through cabinet (pick)
2. Face process: cast acrylic (preferred for routed/formed faces) or extruded acrylic (flat high-volume)—state which
3. Face thickness: ___ mm / ___ in (target); confirm with shop for height and wind
4. Face finish strategy: opal diffuser + translucent vinyl / colored translucent acrylic / clear + vinyl / sprayed—attach night sample
5. Outdoor: UV-stable exterior grade; color system per approved sample
6. Returns / can: aluminum; gauge and depth per shop engineering (common practice starting points only until confirmed)
7. Retention: trim cap width/color ___ or trimless lip detail; acrylic-compatible sealant only
8. Weathering: expansion clearance for large faces; weep/drain at low points; no water traps behind faces
9. Destination country: ___ ; mains approx. 230 V AC (EU/UK/AU) or 120 V AC (US); LED DC voltage per shop design
10. Submittals: sheet brand/grade cut sheet, face night sample, shop drawings before production

Practical takeaway

Call the acrylic process (cast vs extruded), then thickness, then how color and diffusion are achieved, then how the face is retained and drained. Cast sheet is the usual drawing default for precision-routed and formed illuminated faces; extruded earns its place on flat, tolerance-sensitive, cost-driven panels. Thickness belongs as a confirmed shop value, not a single invented standard. Clear expansion, weep, and trim notes prevent the failures clients remember: bowed faces, fogged cans, and water sitting on LEDs.
