Face retention is a materials decision, not only a styling preference. The retainer that wraps or seats an illuminated face decides edge durability, service access, daytime outline colour and how much stroke the shop can safely light. This materials note compares aluminum trim-cap systems with plastic (PVC or similar) retainers and with trimless bonded faces, so buyers can put drawing-ready language on an RFQ. It is not a certification brag and not a claim that any factory is whole-sign listed. Name the destination country on every package: European Union, United Kingdom and Australia sites typically plan around approximately 230 V AC mains; United States sites typically plan around approximately 120 V AC mains.
What the retainer actually does

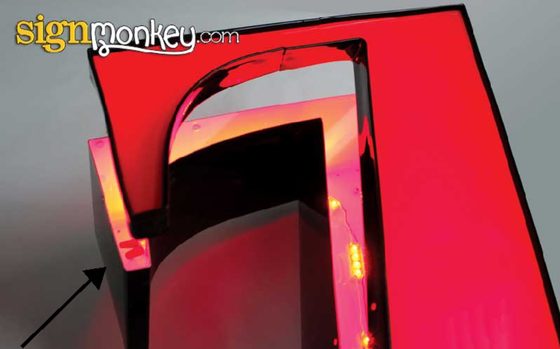

On a classic face-lit channel letter, the trim cap (retainer) wraps the perimeter of the acrylic or polycarbonate face and locks it to the metal return. It protects the face edge, defines a coloured outline if you want one, and often lets the face come off for LED service when screws engage the return through the skirt.
Plastic retainers (commonly PVC-based trim cap profiles) are widely stocked, formable around letter shapes, and familiar to many North American and export shops. They accept face adhesives designed for the liner chemistry and are easy to colour-match with vinyl or painted accents.
Aluminum trim systems form metal coil into a retainer profile, sometimes with an inner liner for bonding. Equipment makers describe aluminum trim as an alternative to buying plastic trim cap: the metal edge resists UV chalking and cracking that aged plastic can show, and colour is paint or coil finish rather than vinyl wrap alone. Confirm coil colour, liner chemistry and adhesive with the fabricator—do not assume every aluminum trim bonds like every PVC trim.
Plastic retainer: when it fits the drawing
Specify plastic trim cap when the brand outline colour is a defined vinyl or paint match; when the shop’s exterior system is retainer-based; when heights and strokes sit inside the fabricator’s plastic-trim envelope; and when face removal for service is required. On the drawing, call profile size (shops often discuss 1 in / ≈25 mm or 2 in / ≈50 mm skirts—confirm), trim colour (match face, match returns, or brand chip), and screw or clip retention.
Watch UV and impact at the destination climate. Coastal, high-sun and high-traffic fascia may need a written maintenance note for chalking or scuffs. Plastic trim does not by itself prove outdoor suitability—face material, gasket intent and drain holes still belong on the sheet.
Aluminum trim: what to lock in millimetres
Specify aluminum trim when the edge must read as metal; when UV stability of plastic trim is a known failure mode on the site; or when the fabricator’s process forms trim from coil in-house. Call alloy/finish (painted coil colour, mill with clear, or brand match), profile height, and whether inner openings (A, B, O, R) get the same trim treatment. Dry-fit against routed faces before bonding; corner notches and seam locations should appear on shop drawings.
Aluminum trim still needs a compatible bond to acrylic or polycarbonate. If the coil carries a PVC or primer liner, name the adhesive family the shop will use. If the design is screw-retained without full perimeter bond, say so—service access changes.
Trimless is a third materials path
Trimless faces aim for a flush illuminated silhouette with little or no visible retainer ring. Bonded, routed or seated faces change the edge material story entirely: there may be no trim colour line, and service may mean different fasteners or face destruction risk. Vendor guidance sometimes limits trimless to smaller capital heights—treat that as bidder-specific, not universal law. On the RFQ, write “trimless flush face” only when the fabricator confirms size and stroke limits in writing.
Do not mix trimless language with “trim colour to match” on the same line. If undecided, price trim-cap (plastic and/or aluminum) and trimless as separate options on identical artwork.
Face sheet pairings
Retainer choice interacts with face sheet:
- Cast or extruded acrylic thickness and optical diffuser needs (separate from last week’s polycarbonate-versus-acrylic face article—here the question is how the edge is held).
- Polycarbonate faces where impact resistance matters; confirm how the retainer grips a tougher sheet.
- Painted returns: trim colour can match returns, face or a third brand chip—put the chip on the RFQ.
Drain holes at low points, gasket or seal intent, and whether the face is hinged, screwed or bonded all belong beside the retainer callout.
Electrical is not the retainer—but wattage still moves
Keep three electrical ideas separate from trim language:
- Building mains for the named country (approximately 230 V AC EU/UK/AU; approximately 120 V AC US)
- LED DC inside letters (commonly 12 V or 24 V DC—confirm)
- Driver location and cable run
A heavier aluminum skirt or deeper can can change mass, shipping and sometimes module layout. Ask for estimated watts and outdoor IP intent. Request component documentation relevant to the destination country; do not substitute whole-sign CE, UL or RCM claims for parts-level paperwork.
Drawing checklist (copy onto the materials block)
- Face retention: plastic trim cap / aluminum trim / trimless / undecided (price options)
- Trim profile size; trim colour chip or “match face / match returns”
- Face material and thickness target; diffuser yes/no
- Return material and depth; painted return colour
- Bonding / screw retention / service removal intent
- Drain holes and seal notes
- Destination country; mains ~230 V or ~120 V; LED DC preference; driver location
- Outdoor IP intent; packing; lead time; shop drawings before production
Shop-floor takeaway
Put the retainer on the drawing the way you put acrylic thickness on the drawing: in plain millimetres or inches, with colour and service access stated. Plastic trim, aluminum trim and trimless solve different edge problems. When face sheet, return and retainer share one materials block—and voltage stays on its own three lines—bidders stop guessing which outline you meant to buy.
