ACM vs Solid Aluminum for Flat Panels & Flat-Cut Letters: Drawing Spec Notes

Flat panel signs, projecting blade signs, and flat-cut dimensional letters often start with the same drawing question: aluminum composite material (ACM / ACP sandwich panel) or solid aluminum sheet? The answer drives weight, flatness, edge detail, finish strategy, fastener design, and how the shop will route or fold the work. This article is for designers and project coordinators who need drawing-ready material notes—not brand slogans. Confirm every thickness, core type, skin gauge, finish system, and span with the fabricator’s shop engineering for panel size, letter height, wind exposure, and mounting substrate.

ACM / ACP vs solid aluminum: what actually changes on the drawing

Aluminum composite (ACM / ACP) is a sandwich: two thin aluminum skins bonded to a polymer or mineral-filled core. Trade supplier guidance commonly describes sign-grade panels as roughly 3 mm overall thickness with aluminum skins often discussed in about the 0.2–0.3 mm range per face (economy skins can be thinner; premium skins thicker—confirm the stocked grade). The core carries most of the thickness. Shops value ACM for stiffness-to-weight, large-panel flatness for print or vinyl, and V-groove fold workflows for tray returns.

Solid aluminum sheet is a single wrought aluminum alloy plate or sheet—no composite core. Sign practice commonly discusses thinner sheet for folded pans and returns, and heavier plate for flat-cut (FCO) letters and logos. Solid aluminum has no PE/FR core conversation; finish and alloy selection still matter. It is typically heavier for a given overall thickness and can oil-can on large unsupported faces unless stiffened or framed—shops often prefer it where impact toughness, long exterior life, tapped stud mounting into plate, or a non-composite substrate is required by the project brief.

Drawing tip: write the construction explicitly. Prefer “3 mm ACM, PE core, _____ mm skins, _____ finish” or “solid aluminum plate, _____ mm / _____ in thick, alloy _____, finish _____” over a vague “aluminum panel” or “metal letters” line.

Where ACM usually fits, and where solid aluminum earns the cost

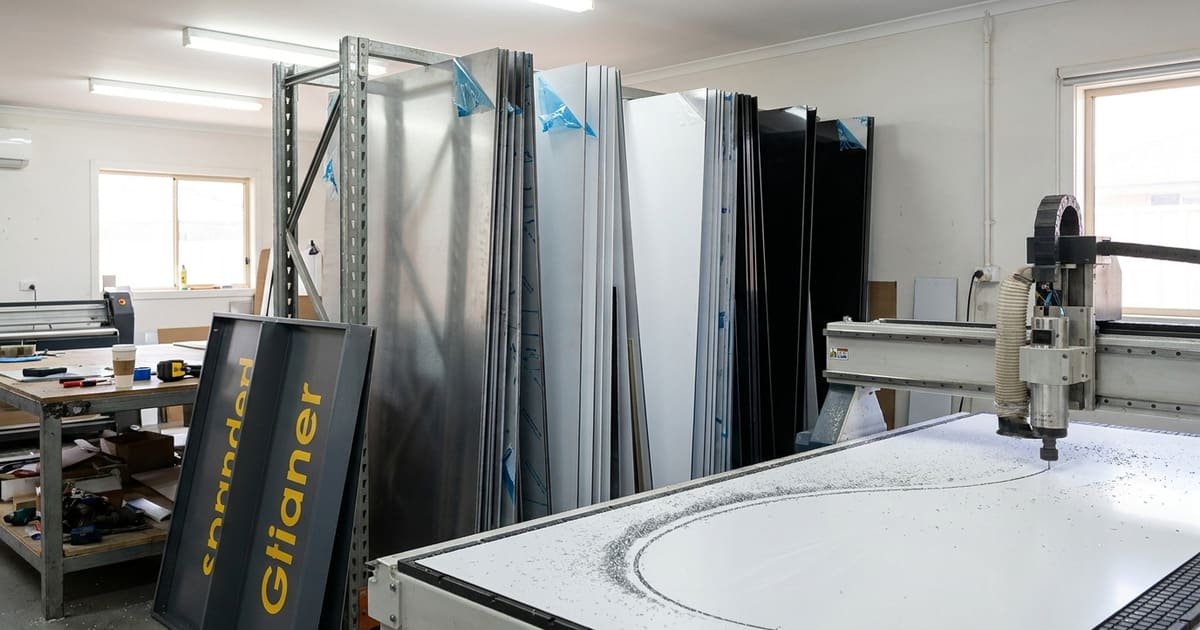

Manufacturer and trade literature commonly place ACM on fascia panels, printed wall signs, wayfinding blanks, ACM backer panels behind dimensional letters, and folded tray / pan faces fabricated by routing a V-groove and folding returns. Projecting blade signs often use ACM faces or trays on an engineered frame—do not treat the panel alone as the structural answer; confirm armature and wind design with shop engineering.

Solid aluminum commonly wins for:

• Flat-cut letters and logos that need substantial visual depth, crisp visible edges through the full thickness, and blind-tapped studs into plate.
• High-impact or long-life exterior blanks where the brief calls for plate rather than a sandwich panel.
• Folded trays and built-up letter cans when coil or sheet gauge is part of a fabricated aluminum system (often a different conversation from flat ACM blanks).
• Sites where the project team wants to avoid a polymer-core panel callout for reasons outside the sign shop’s material preference—document the requirement; do not invent a compliance claim on the drawing.

Many packages mix both: an ACM backer or fascia with solid aluminum flat-cut letters on standoffs. Schedule each layer separately.

Thickness ranges shops commonly discuss

These are common practice ranges discussed in trade fabrication and manufacturer literature—not a universal code minimum. Always confirm with shop engineering:

• ACM overall thickness: 3 mm is widely treated as the default for fascia, printed panels, and many tray signs. 4 mm (and occasionally thicker architectural grades) appears when shops want more stiffness on longer unsupported spans or larger folded trays—confirm sheet availability and fold tooling.
• ACM skin thickness: supplier notes often distinguish economy skins (examples around 0.15 mm appear in trade listings and may be unsuitable for folding) from premium skins around 0.3 mm and up that better resist denting and support V-groove folds. Put skin thickness on the schedule when folding or outdoor durability matters.
• Solid aluminum flat panels / faces: shops commonly discuss roughly 1.5–3 mm sheet for many sign faces and pans, with thicker sheet or framing when spans grow—confirm alloy, temper, and stiffening.
• Solid aluminum flat-cut letters: trade letter manufacturers commonly list aluminum plate depths such as about 1/8 in, 1/4 in, 3/8 in, 1/2 in, and thicker options; 1/4 in and 3/8 in are frequently discussed for commercial exterior FCO work. Larger letters generally need more thickness to limit warp—confirm with letter height and mounting.

On the drawing, give a target thickness and allow an equal-performance alternate approved in shop drawings. Never imply one thickness fits every panel width or letter height.

Core type notes (PE vs fire-rated / FR): drawing callouts only

ACM cores are a specification conversation, not a finished-sign conformity mark. Shops and suppliers commonly discuss:

• PE core (polyethylene): standard signage-grade core in many markets; light, economical, and easy to route and fold. Combustible core behavior is why façade and some interior fit-out specs reject PE for cladding—do not assume PE is acceptable wherever “ACM” appears in a landlord package.
• FR / mineral-filled cores (and related limited-combustibility architectural grades discussed under various trade labels): used when a project brief asks for better fire-related documentation than PE. Trade guidance repeatedly warns that marketing words like “FR” are not self-defining—ask the supplier which product-specific test reports and classifications apply, and attach those documents to the RFQ rather than inventing a class on the drawing.

Write the core as a callout for the panel product the shop will buy (“ACM, PE core” or “ACM, FR core per approved cut sheet”). Do not claim whole-sign CE, UL, RCM, or building-code compliance for a finished sign based on panel marketing language. If the building team requires documented reaction-to-fire evidence, require submittals and let the AHJ / project fire consultant decide—not the materials note alone.

Edge finishing: routed, folded returns, painted edges

Edge treatment is where ACM and solid aluminum look different on site:

• Routed flat ACM letters / logos: the cut edge exposes the core stripe between skins. Shops commonly paint or otherwise finish visible edges, or accept the stripe when the design intends a layered look. Note whether edges are painted to match face, contrasting, or left as-cut.
• V-groove and folded ACM trays: fabricators rout a controlled groove and fold returns for tray depth. Call out return depth, corner treatment (welded, filled, mechanically joined), and that fold tooling must leave adequate skin integrity—over-cutting skins is a known failure mode in trade guidance.
• Solid aluminum FCO edges: the full plate thickness is visible metal. Specify deburr / ease, and whether premium chamfered or eased edges are required (trade letter catalogs often limit chamfers to certain height and thickness bands—confirm).
• Solid aluminum pans: press-brake or welded returns; edge and corner quality depends on gauge and shop process—schedule separately from ACM tray notes.

Finish callouts: powder coat, PVDF, anodize, and print-ready faces

State the finish system and color reference (RAL, Pantone, brand deck, or approved sample). Common drawing language in signage:

• Factory coil-coated ACM faces: many panels ship polyester- or PVDF-coated. Trade substrate guides often treat polyester as common for sign work and PVDF as the more architectural weathering conversation—confirm the coated face intended for exterior exposure and whether both faces are finished.
• Powder coat: widely used on solid aluminum letters, fabricated aluminum, and some ACM after fabrication; specify gloss/sheen and outdoor-rated system. Note that powder after routing must cover edges if the design requires seamless color wrap.
• Anodize: architectural option on solid aluminum for clear or colored oxide finishes; less typical as a field callout on PE-core ACM skins—confirm process with the shop.

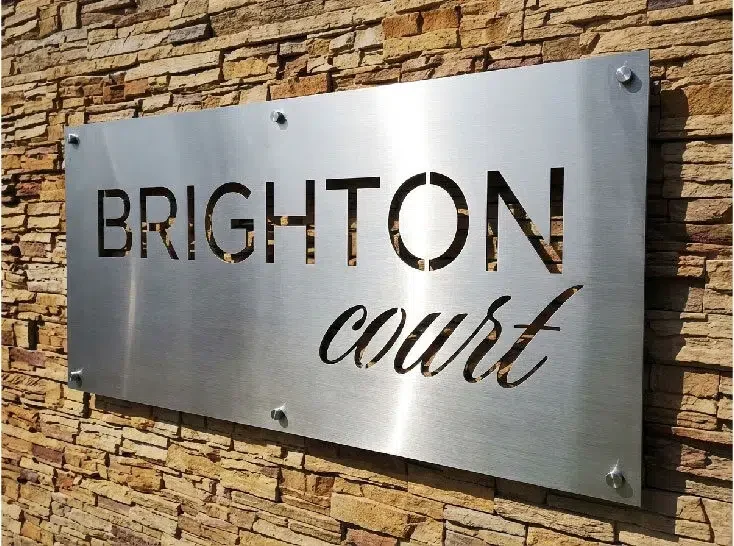

• Brushed / mill with clear protective coat: common on FCO aluminum and brushed ACM faces; require protective film removal notes and handling so brush direction stays consistent across letters.
• Direct UV print / vinyl on ACM: ACM’s flatness is a primary reason shops pick it for graphics. Specify print-ready face, primer if needed, and outdoor laminate or clear where the program requires it.

Do not invent a warranty year on the drawing. Ask which finish system the fabricator stocks and note “finish per approved shop sample / cut sheet.”

Fasteners, standoffs, and galvanic notes

Mounting must match material thickness and weight:

• ACM panels: point-fixing without slip allowance can telegraph oil-canning; shops discuss channel frames, Z-clips, split battens, and engineered standoffs. Keep edge distances and isolation pads in the shop drawings. Isolate dissimilar metals in wet locations to reduce galvanic staining.
• Solid aluminum FCO letters: blind-tapped holes with threaded studs, pad mounts, or decorative standoffs are common. Trade practice often uses spacer sleeves for a controlled stand-off (shops discuss a range of short offsets—confirm height for shadow and masonry clearance). Provide a full-size mounting pattern.
• Heavy plate: confirm stud diameter, embedment, and substrate anchors with install engineering—weight is not the same as 3 mm ACM letters of the same outline.

Wind and span: treat large ACM fascias, blade signs, and tall letter sets as “confirm with shop engineering / structural as required.” Do not invent span tables on the materials sheet.

Illumination note (only when the build is lit)

Most ACM vs solid aluminum flat-cut comparisons are non-illuminated. If the same elevation adds halo-lit letters, lightbox cabinets, or LED-lit panels, name the destination country on the electrical notes. Building mains are typically about 230 V AC in the European Union, United Kingdom, and Australia, and about 120 V AC in the United States—confirm with the site electrician. LED modules and drivers are a separate low-voltage DC design (often 12 V or 24 V DC in shop practice—confirm). Keep material schedule lines and electrical notes on the same sheet set; do not treat a panel or plate choice as a whole-sign conformity mark for any market.

Sample material schedule block

Copy and adapt:

1. Sign type: flat panel / folded tray / blade face / flat-cut letters or logo / ACM backer + FCO letters (pick)
2. Substrate: ACM (ACP sandwich) or solid aluminum sheet/plate—state which
3. If ACM: overall thickness ___ mm (common practice starting point 3 mm or 4 mm—confirm); skin thickness ___ mm per face; core PE or FR per approved cut sheet (attach)
4. If solid aluminum: thickness ___ mm / ___ in; alloy/temper ___ (or “per shop stock, submit”); flat-cut vs folded pan noted
5. Edge treatment: as-cut / painted edge / V-groove fold returns ___ mm deep / deburr-ease / chamfer (if approved)—state which
6. Finish: powder coat / PVDF coil coat / polyester coil coat / anodize / brushed + clear / direct print + laminate—color ref ___ ; exterior grade yes/no
7. Graphics: vinyl series ___ / UV print / none
8. Mounting: standoffs ___ mm projection / stud + spacer / Z-clip / frame—pattern required; isolate dissimilar metals
9. Wind / span: confirm with shop engineering for panel size, blade projection, and letter height
10. If illuminated on same elevation: destination country ___; mains approx. 230 V AC (EU/UK/AU) or 120 V AC (US); LED DC per shop design
11. Submittals: panel/plate cut sheet, finish sample, shop drawings, mounting pattern before production

Practical takeaway

Call the construction first (ACM sandwich vs solid aluminum), then overall thickness and—if ACM—skin and core, then edge and finish, then mounting. ACM earns its place on flat, light, foldable, print-ready panels; solid aluminum earns its place on substantial flat-cut letters, impact-prone blanks, and packages that want plate without a polymer core. Thickness and core grades belong as confirmed shop values with cut sheets attached, not as invented standards. Clear edge, finish, and fastener notes prevent the failures clients remember: wavy fascias, visible core stripes that were never meant to show, and letters that oil-can or pull fasteners on the wrong substrate.
